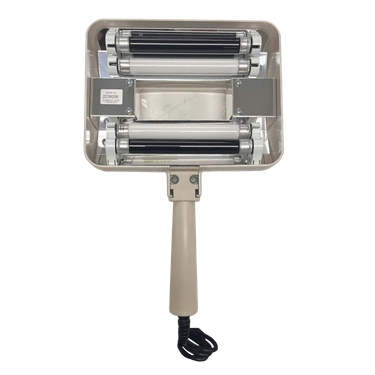

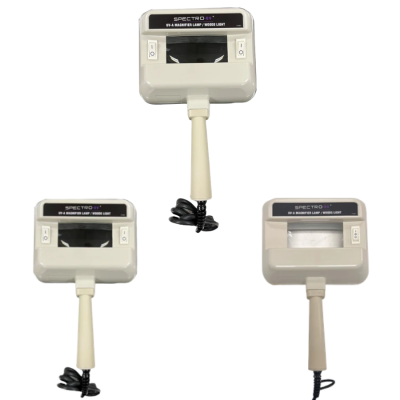

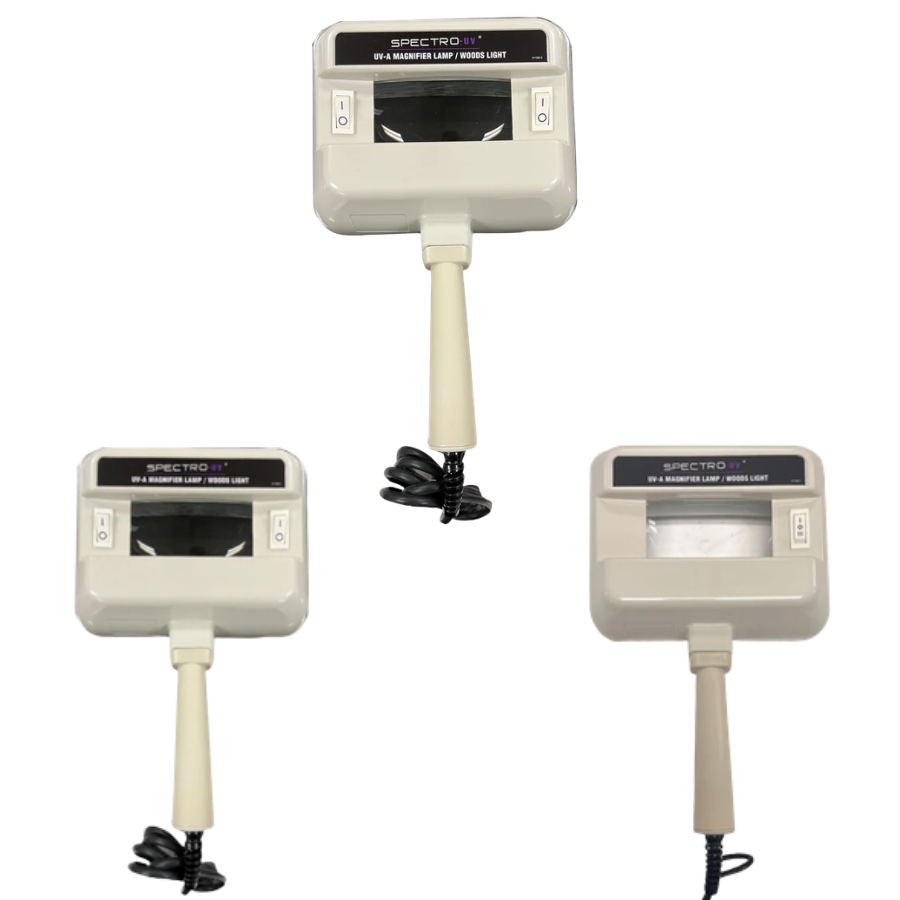

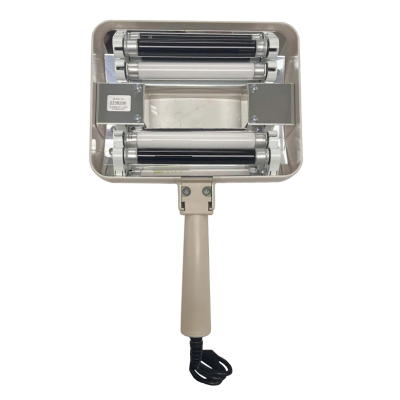

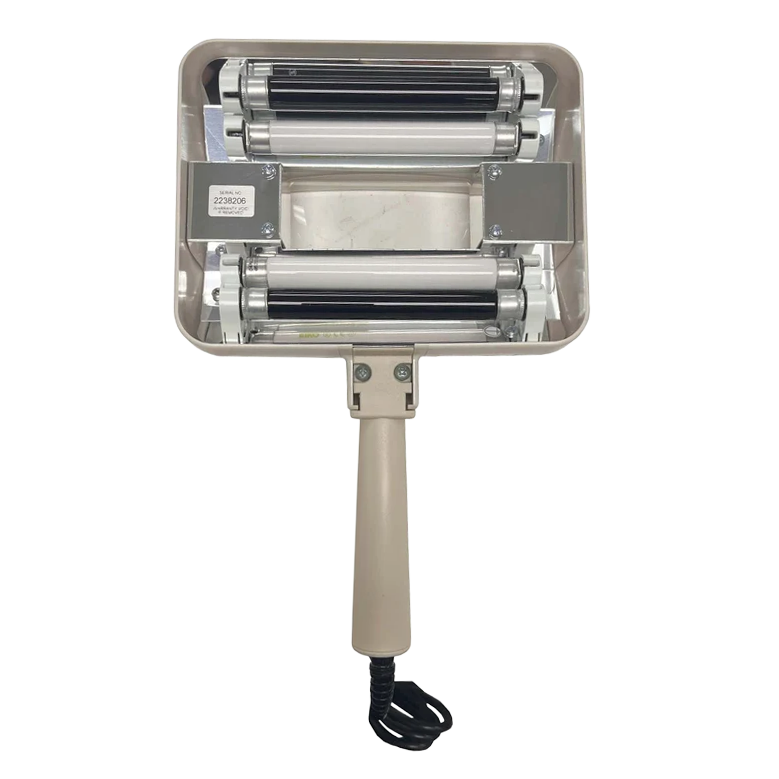

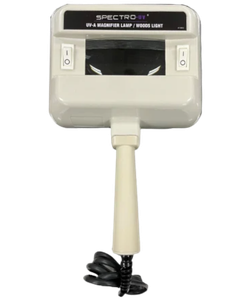

The Spectro-UV QZ Series Wood's Exam Lamps utilize long-wave UV light to detect trace amounts of fluorescence through a built-in 3x magnifier lens. The series offers three configurations of long-wave UV and white light, letting you select the unit ideal for your specific application — whether dermatological exams, forensic analysis, mineral inspection, industrial NDT, or laboratory research. Each lamp is built with an impact-resistant polycarbonate housing, an ultra-lightweight ballast design, and a rugged phenolic handle with a friction-lock swivel joint for hands-free positioning at any angle.
|
QZ-12 |
QZ-22B |
QZ-22 |
|
| Typical Peak UV Intensity at 6" (15 cm): | 700 µW/cm² | 1,400 µW/cm² | 700 µW/cm² |

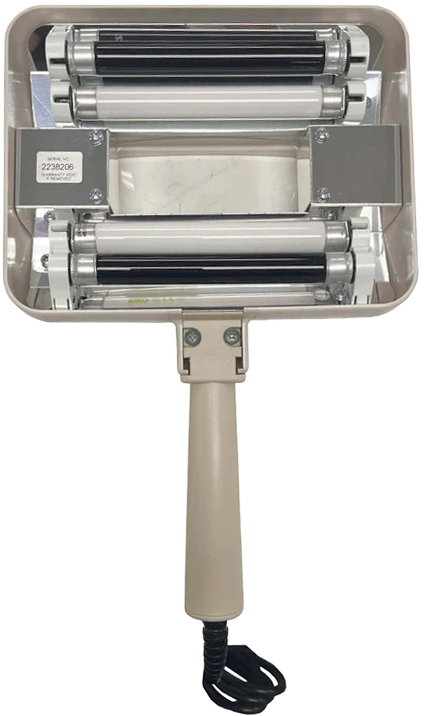

| Tubes: | Two 4-Watt Integrally Filtered UV-A Tubes | Four 4-Watt Integrally Filtered UV-A Tubes | Two 4-Watt Integrally Filtered UV-A Tubes + Two 4-Watt White Light Tubes |
| Weight: | 2 lbs (0.9 kg) | 2 lbs (0.9 kg) | 2 lbs (0.9 kg) |
| Amps: | 0.2 | 0.4 | 0.2 |
| Housing Dimensions (W x L x H): | 5.75" x 7" x 2.25" (14.6 x 17.8 x 5.7 cm) | 5.75" x 7" x 2.25" (14.6 x 17.8 x 5.7 cm) | 5.75" x 7" x 2.25" (14.6 x 17.8 x 5.7 cm) |
| Magnification: | 3x @ 8" focal length | 3x @ 8" focal length | 3x @ 8" focal length |
| Best For: | General UV-A fluorescence inspection where standard intensity is sufficient | Applications requiring higher UV-A intensity (2x) for improved fluorescence detection | Applications requiring both UV-A and white light in a single unit |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| Spectro-UV QZ-12 Includes: Two 4-Watt Integrally filtered UV-A Tubes | UV-SP-QZ-12 |
|
$430.00 | ||
| Spectro-UV QZ-22 Includes: Four 4-Watt Integrally filtered UV-A Tubes | UV-SP-QZ-22 |
|
$500.00 | ||
| Spectro-UV QZ-22B Includes: Two 4-Watt Integrally Filtered UV-A Tubes + Two 4-Watt White Light Tubes | UV-SP-QZ-22B |
|
$500.00 | ||
