Spectro-UV EagleEye 2 EK-3000 LED Inspection Kit

Spectro-UV EagleEye 2 EK-3000 LED Inspection Kit

Makes Inspection a One-Person Job

Overview

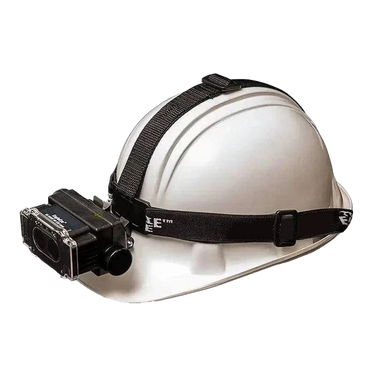

The EagleEye™ EK-3000 inspection kit contains the EE-365 lamp, a palm-sized, versatile, hands-free light source featuring two ultra-high intensity UV-A LEDs for NDT testing, plus a three-LED white light assembly for general inspection. In addition, the kit contains a unique lamp mount/sprayer that allows the lamp to be mounted together with a penetrant can for single-handed NDT yoke inspection, and an adjustable strap so the lamp can be worn on a helmet or directly on the head for hands-free operation. The EagleEye EK-3000 is ideal for fluorescent magnetic particle and penetrant testing, mining inspection and other specialized applications.





Features

  • Nominal steady-state UV-A Intensity of 4500 μW/cm2 @ 15" (38 cm)
  • UV-A Coverage Area: 5.5" (14 cm)
  • Low visible light emission: less than 1 foot-candle (<10 Lux)
  • Instant-on operation. Reaches full UV-A intensity immediately.
  • Toggle switch helps conveniently to switch between UV-A & white light
  • Built-in fan keeps light source cool to maintain optimum UV-A intensity during extended use.
  • Splash guard with integral particulate filter protects UV-A LEDs and fan from damage.
  • Powered by one rechargeable lithium-ion battery (installed). Provides up to 75 minutes of continuous inspection between charges.
  • 100,000-hour LED service.
  • Dust tight & Water Resistant
  • Optional Spray Can Mount - attaches lamp to any magnetic particle can for use with Magnetic Yokes

UV-A Beam Profile

Technical Specifications

EagleEye2 EK-3000 Specifications

Nominal Steady-State UV-A Intensity: 4500 μW/cm2 @ 15" (38 cm)
UV-A Coverage Area: 5.5" (14 cm) at 15" (38 cm) @ minimum 1200 μW/cm2
Visible Light Emission: <1 foot-candle (<10 Lux)
Light Source: 2 UV-A LEDs & 3 White Light LEDs
Lamp Style: Cordless Handheld Lamp
Dimensions: 3.75" x 2.25" x 1.85" (9.5 x 5.7 x 4.7 cm)
Weight: 8 oz. (227 g) with battery
Run Time: 75 minutes (continuous)
Power Requirements: One 3.7V 2200mA/Hr. Lithium-Ion Battery (rechargeable)

EagleEye2 EK-3000 Kit Includes

  • EE-365 EagleEye™ 2 Handheld Lamp
  • Lanyard
  • 2 replacement splash guards with integral particulate filters
  • 2 spare rechargeable batteries
  • Battery charging cradle with AC Cord Set
  • UV absorbing spectacles
  • Soft Carrying Case

Note: There is a $20 small order fee for orders valued less than $200

Product Literature

Description Part # Saved Price Select Option Add to
Spectro-UV EagleEye2 EK-3000 Kit Includes: EE-365 EagleEye™ 2 Handheld Lamp, Lanyard, 2 replacement splash guards w/ integral particulate filters, 2 spare rechargeable batteries, Battery charging cradle w/ AC Cord Set, Spectacles & Soft Carrying Case UV-SP-EK-3000
$999.00
Head Strap UV-SP-HS-100
Request Pricing
Lamp Mount/Sprayer UV-SP-LMS-100
Request Pricing
Spectro UV 18650 3.7V 3200MAH 40A Rechargeable Lithium-ion Batteries for Opti-LUX (pack of 2) (old part #:127568) UV-SP-149828
$20.00
Spectro UV Battery Charger Cradle and AC Cord (100 - 120V / 50 - 60 Hz) UV-SP-128217
$89.00
