LCNDT HD Series LED UV Headlamps

LCNDT HD Series LED UV Headlamps

Powerful 365nm UV-A LED Headlamp with 10-hr. Continuous Battery Life

LCNDT HD-100 and HD-200 LED UV Headlamps

The HD-100 is a Focused UV Headlamp with ~4,500 µW/cm2 (#UV-LC-HD-100)

The HD-200 is a Broad Beam UV Headlamp with 3,000 µW/cm2 (#UV-LC-HD-200)

  • Meets ASTM UV-A intensity and LED wavelength specifications for FPI and MPI.
  • 10 hours of continuous operation on a single set of batteries
  • No heat
  • Powerful Nichia LEDs – 365nm
  • LED lifespan > 30,000 hours
  • Only 0.6 pounds – convenient to use
  • Supplied with a Certificate of Conformance for both wavelengths and output measurements.
  • IP65 Protected, black anodized aluminum body

Technical Specifications

HD-100 Specifications

  • UV Intensity @ 15" (38 cm): ~4,500 µW/cm2

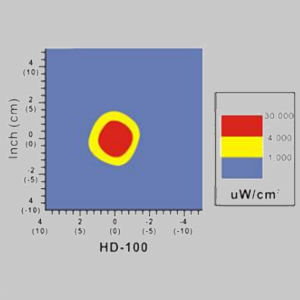

  • Diameter UV Coverage Area @ 15" (38 cm): 2.6" (6.5 cm)
  • Low Visible Light Emission: Less than 2 ft. candles (22 lux)
  • Dimensions: 8.2” x 1.7” (210 x 45 mm)
  • Head Part Diameter: 7.9” (220 mm)
  • Power: Two 18650 Li-ion rechargeable batteries
  • Weight: 0.6 lbs. (250g)
HD-200 Specifications

  • UV Intensity @ 15" (38 cm): 3,000 µW/cm2

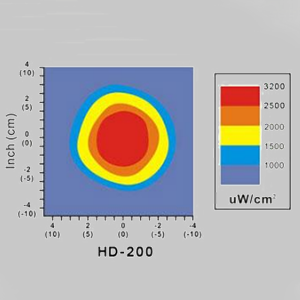

  • Diameter UV Coverage Area @ 15" (38 cm): 5.1" (13 cm)
  • Low Visible Light Emission: Less than 2 ft. candles (22 lux)
  • Dimensions: 8.2” x 1.7” (210 x 45 mm)
  • Head Part Diameter: 7.9” (220 mm)
  • Power: Two 18650 Li-ion rechargeable batteries
  • Weight: 0.6 lbs. (250g)



Kit Includes:

  • HD-100 or HD-200 Headlamp
  • UV-Absorbing Spectacles
  • Two 18650 Li-ion rechargeable batteries
  • 110 – 220 VAC Charger
  • Robust Carrying Case
  • PURE-365 Wood Glass UV Filter
  • Certification to ASTM E1417, ASTM E1444, ASTM E2297, ASTM E3022

The HD Series Headlamps Include a 2 Year Parts / 1 Year Labor Warranty

Product Literature

Description Part # Saved Price Select Option Add to
LCNDT HD-100 LED UV Lamp with ASTM Certification UV-LC-HD100
$475.00
LCNDT HD-200 LED UV Lamp with ASTM Certification UV-LC-HD200
$475.00
