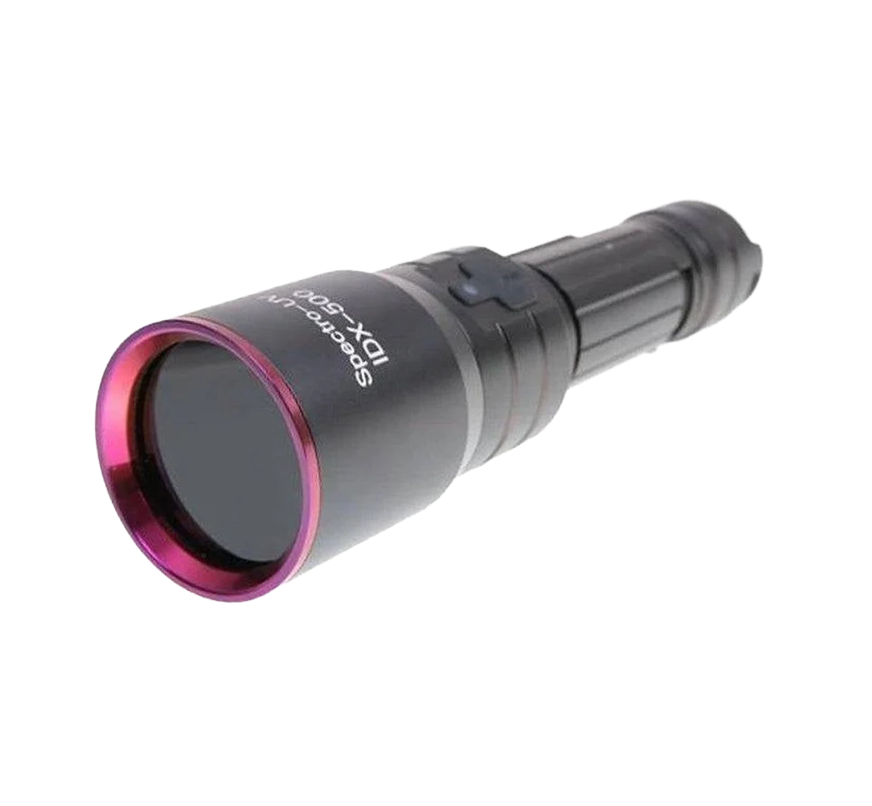

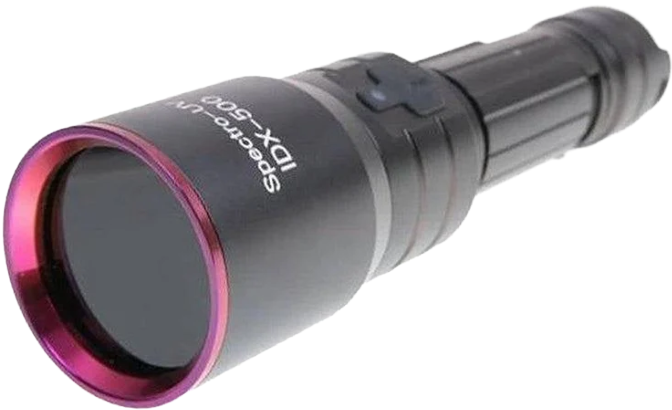

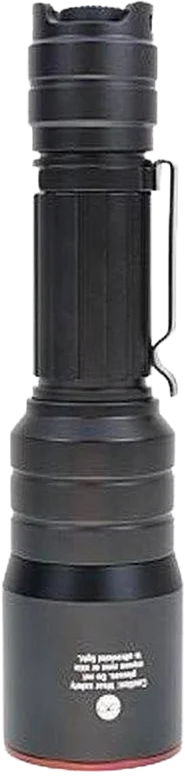

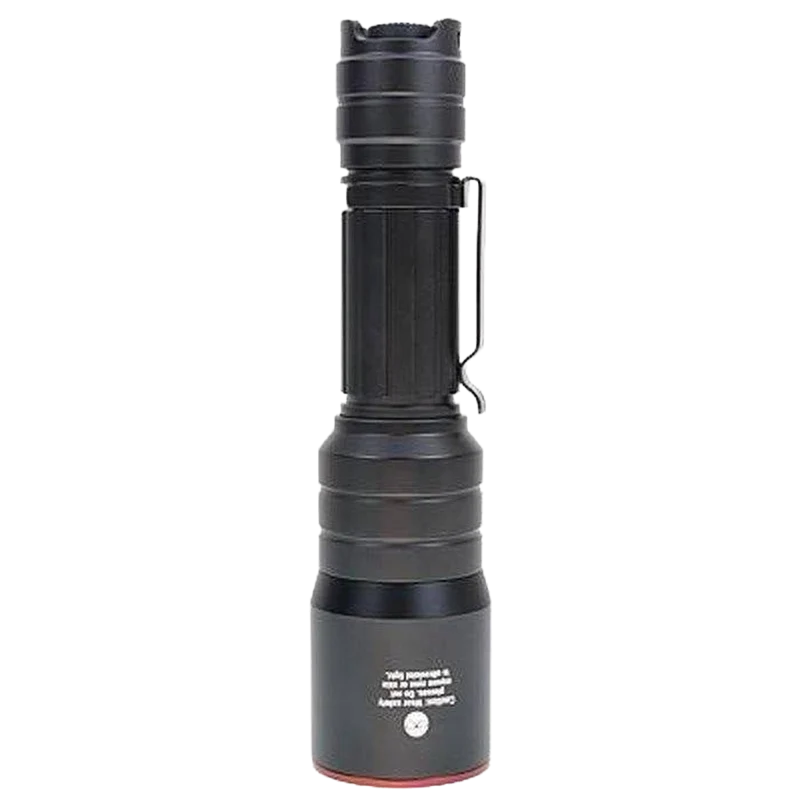

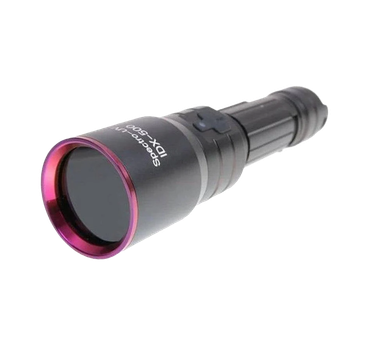

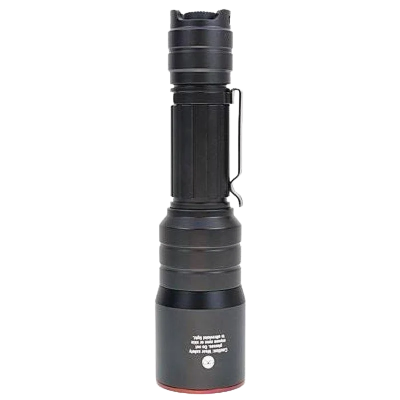

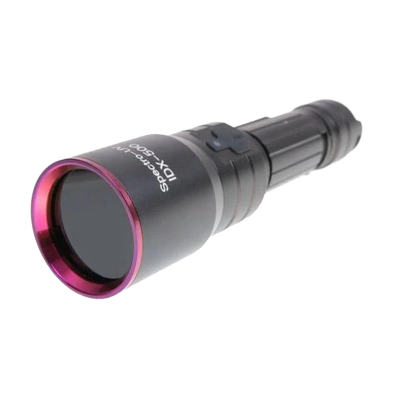

The IDX-500 is a rechargeable 365nm UV-A LED flashlight engineered for non-destructive testing (NDT) applications, including fluorescent penetrant testing (FPI) and fluorescent magnetic particle testing (MPI). Delivering an exceptional nominal steady-state UV-A intensity of 33,000 µW/cm² at 15" (38 cm), the IDX-500 provides clear, high-contrast fluorescent indications for accurate and efficient inspections. Its rugged anodized aluminum body minimizes corrosion and stands up to years of heavy field use, while the rechargeable Lithium-Ion battery provides 3 hours of continuous UV-A light between charges. Instant-on operation ensures the lamp reaches full power immediately — no warm-up delay. Compact, lightweight, and ideal for small-space inspections in the field.
| IDX-500 Technical Specifications |
|
| Light Source: | One (1) 365nm UV-A LED |
| Wavelength: | 365 nm |
| Nominal Steady-State UV-A Intensity @ 15" (38 cm): | 33,000 µW/cm² |
| UV-A Coverage Diameter @ 15" (38 cm): | 3.9" (10 cm) at minimum 1,000 µW/cm² |
| Lamp Style: | Cordless Flashlight |
| Lamp Head Diameter: | 1.6" (4.0 cm) |
| Length: | 6.25" (15.9 cm) |
| Weight (without battery): | 6.84 oz (194 g) |
| Power Requirements: | 1 Rechargeable Lithium Ion Battery |
| Continuous Run Time: | 3 Hours |
| Certification: | CE Rated |
