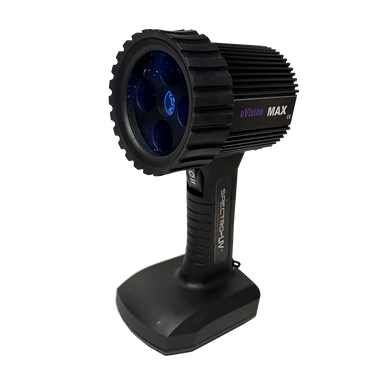

UV-365MAX uVision MAX Wide Angle Handheld UV Lamp

UV-365MAX uVision MAX Wide Angle Handheld UV Lamp

Wide Angle Handheld UV-A Lamps for NDT Inspection

Overview

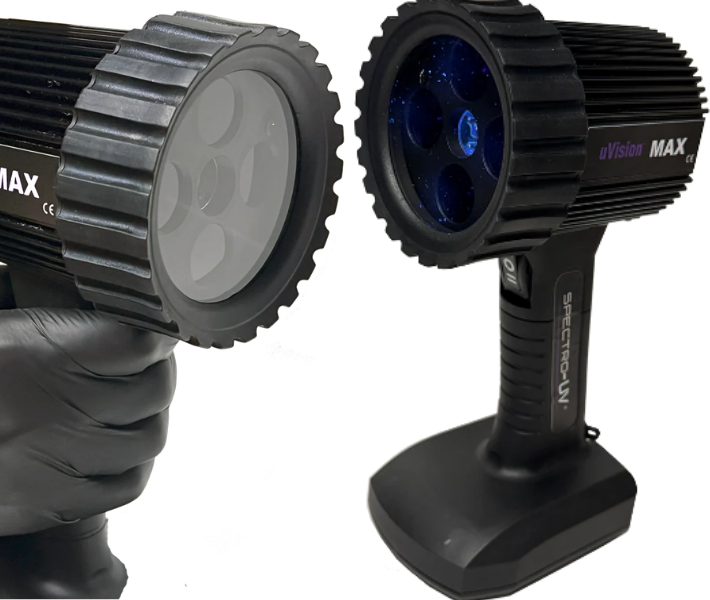

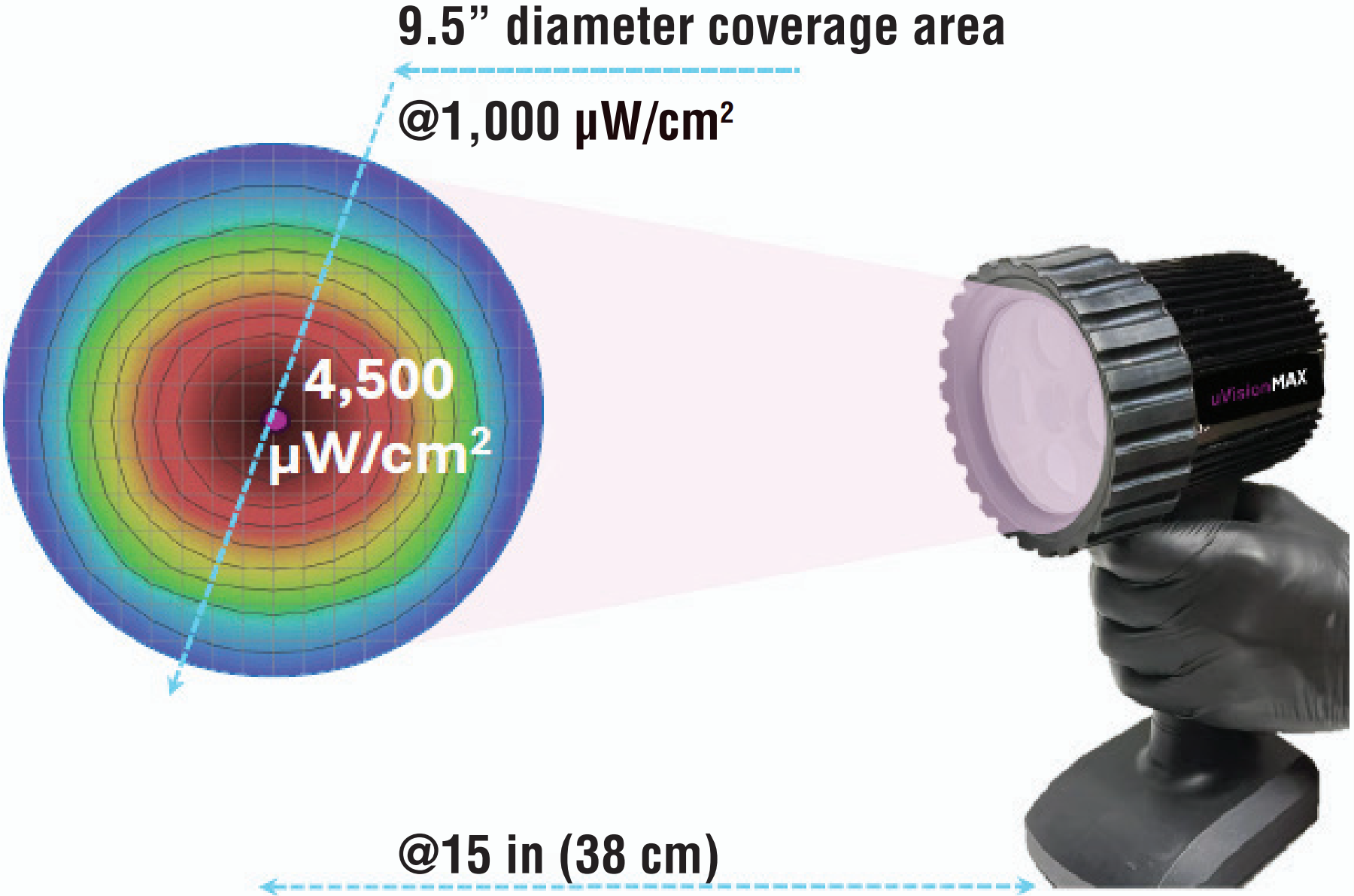

The uVision MAX Series features an innovative 4-lens configuration that projects a 9.5" (24 cm) diameter coverage area from a working distance of 15" (38 cm) — the broadest illumination field available in a compliant, IP-rated handheld lamp. A 4-LED array delivers a steady-state UV-A intensity of 4,500 µW/cm² across the entire coverage zone. The MAX Series maintains an IP65 environmental rating with fanless thermal management and an advanced heat sink design that keeps the lamp housing cool to the touch during extended use. Embedded microprocessors hold specifications instantly with zero warmup time, and an integrated white light LED provides adjustable work-area illumination up to 400 foot-candles (4,306 lux) without the need for a separate light source.

Model Comparison


UV-365MAXHC
UV-365MAXZHC
UV-365MAXMHC
Model Comparison
Configuration: Corded Battery Only Battery & Power Cord
Power Source: AC Cord AC/DC (Li-Ion Battery) AC/DC (Li-Ion Battery)
Run Time: — 7 hrs 7 hrs
Nominal Steady State UV-A Intensity at 15" (38 cm): 4,500 µW/cm² 4,500 µW/cm² 4,500 µW/cm²
UV-A Coverage at 15" (38 cm), minimum 1,200 µW/cm²: 9.5" (24 cm) Ø 9.5" (24 cm) Ø 9.5" (24 cm) Ø
White Light: Yes Yes Yes
Adaptors: A/B, C/F, I, G, N, A/B C/F & G w/ 20 ft cord A/B, C/F, I, G, N A/B, C/F, I, G, N, A/B C/F & G w/ 20 ft cord
Model Compliances
ASTM E3022: ✓ ✓ ✓
ISO 3059: ✓ ✓ ✓
RRES:90061: ✓ ✓ ✓
Airbus AITM6: ✓ ✓ ✓
Pratt & Whitney: ✓ ✓ ✓

Key Features

  • Optimized 9.5 in (24 cm) Diameter Coverage Area
  • 4-lens UV-A Lenses for Enhanced coverage area with uniform intensity distribution
  • Wide-Angle Beam Pattern - Reduces inspection time with broader illumination field
  • Advanced heat sink design
  • Compliant Design - Embedded microprocessors maintain specifications across all operating conditions
  • IP65 Environmental Rating
  • Sealed Control Switch - Grip-mounted, three-way rocker switch (white light/off/UV)
  • Power/Battery Life Light - indicates power level
  • Integral White Light LED - Convenient work area illumination with adjustable intensity

Applications

  • Fluorescent penetrant inspection (FPI) of large surfaces and complex geometries
  • Fluorescent magnetic particle inspection (MPI) in production and field environments
  • Aerospace component and engine inspection under ASTM E3022, Airbus AITM6, Pratt & Whitney, and Rolls-Royce RRES:90061
  • Manufacturing quality control and weld inspection
  • Oil & gas inspection of pipe, tubing, and pressure-retaining components

Technical Specifications

Technical Specifications

Technical Specifications

UV-365MAX uVision Technical Specifications
UV-A Wavelength: 365 nm
Nominal Steady State UV-A Intensity: 4,500 µW/cm² at 15" (38 cm)
UV-A Coverage Area: 9.5" (24 cm) Ø at 15" (38 cm), minimum 1,200 µW/cm²
LED Configuration: 4 UV-A LEDs + 1 white LED with UV-A pass and Borofloat filter protection
Optics: 4-lens UV-A configuration
White Light Intensity: Adjustable up to 400 foot-candles (4,306 lux)
Warmup Time: None — instant on
Thermal Management: Fanless with advanced heat sink design
Environmental Rating: IP65 (dust-tight and water-resistant)
Battery Run Time (MAXZHC / MAXMHC): 7 hrs
Battery Type: Li-Ion (rechargeable)
Certifications & Compliance: ASTM E3022-18; EN ISO 3059; Rolls-Royce RRES:90061; Airbus AITM6-1001 Compliant; Pratt & Whitney Compliant; IP65 Rated

Kit Options

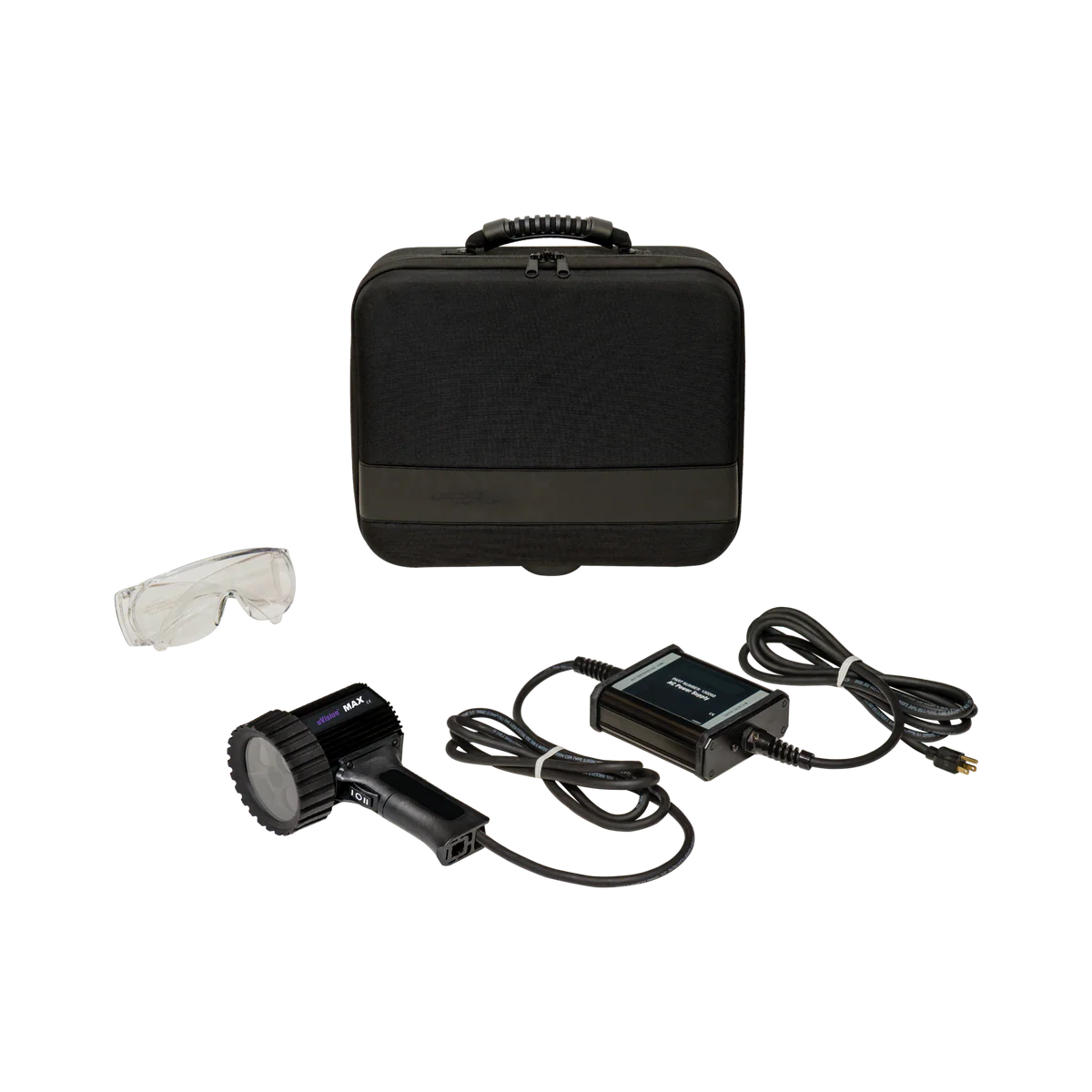

UV-365MAXHC

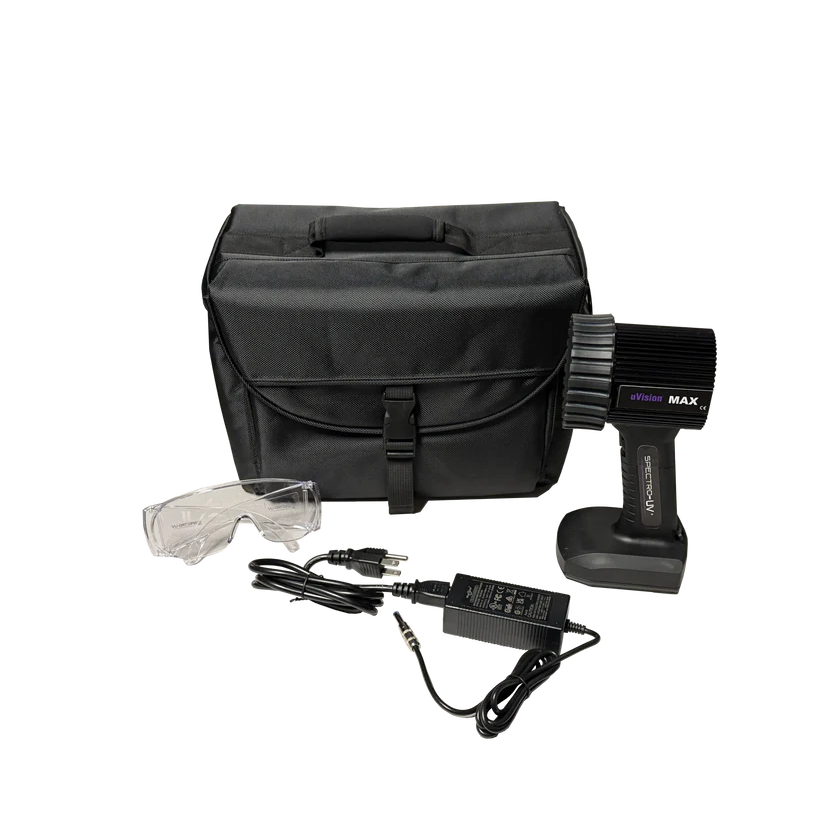

UV-365MAXZHC

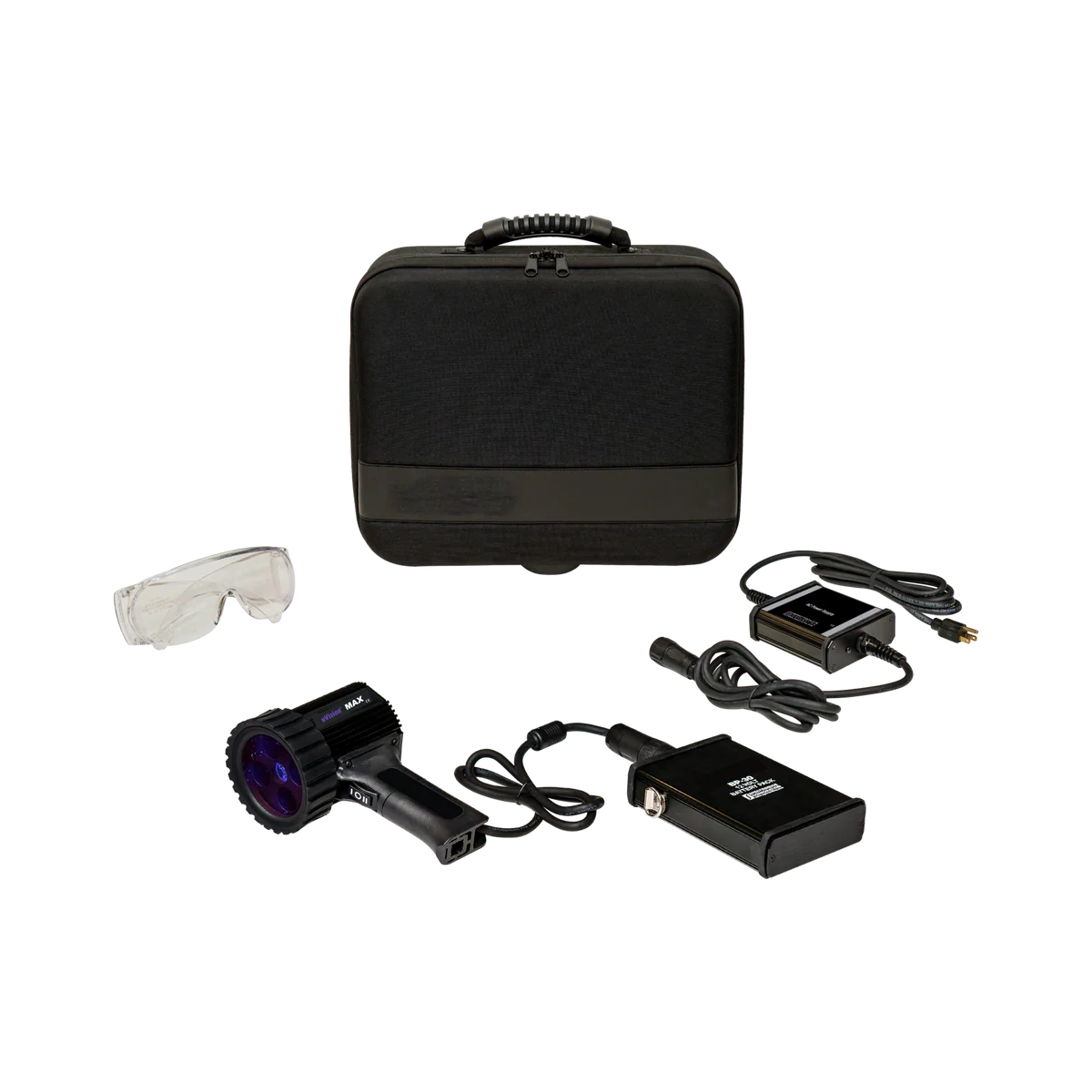

UV-365MAXMHC
uVision™ MAX LED 365nm UV-A Lamp: ✓ ✓ ✓
In-Line AC Power Supply: ✓ — —
In-Line AC Power Charger and Cord: — ✓ ✓
In-Handle Lithium Battery: — ✓ ✓
UV-Absorbing Safety Spectacles: ✓ ✓ ✓
Padded Protective Case: ✓ ✓ ✓

Product Literature

Description Part # Saved Price Select Option Add to

UV-365MAXHC

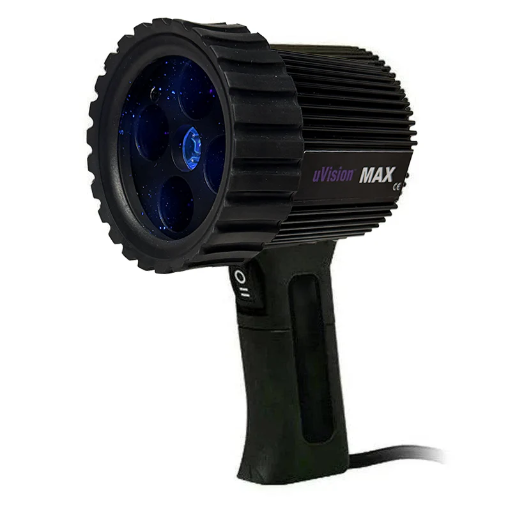

Spectro-UV uVision MAX UV-365MAXHC - Corded Kit Includes: uVision MAX LED 365nm UV-A lamp, In-line AC power charger, uv-absorbing safety glasses & padded protective case UV-SP-UV-365MAXHC
$2,028.00
Spectro-UV uVision MAX UV-365MAXHC/F - 230V/50Hz with European Plug (Plug Type C/F) UV-SP-UV-365MAXHC/F
Request Pricing
Spectro-UV uVision MAX UV-365MAXHC/FA - 220V - 240V/50Hz with Australia/China Plug (Plug Type I) UV-SP-UV-365MAXHC/FA
Request Pricing
Spectro-UV uVision MAX UV-365MAXHC/FB - 230V/50Hz with UK Plug (Plug Type G) UV-SP-UV-365MAXHC/FB
Request Pricing
Spectro-UV uVision MAX UV-365MAXHC/FBR - 220V/60Hz with Brazil Plug (Plug Type N) UV-SP-UV-365MAXHC/FBR
Request Pricing

UV-365MAXZHC

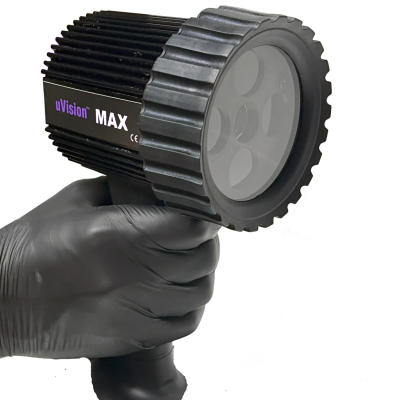

Spectro-UV uVision MAX UV-365MAXMHC - Battery & Power Cord Kit Includes: uVision MAX LED 365nm UV-A lamp, In-line AC Power Charger and cord, UV-absorbing safety glasses, In-handle lithium battery & Padded protective case UV-SP-365MAXMHC
$2,891.00
Spectro-UV uVision MAX UV-365MAXMHC/F - 230V/50Hz with European Plug (Plug Type C/F) UV-SP-UV-365MAXMHC/F
Request Pricing
Spectro-UV uVision MAX UV-365MAXMHC/FB - 230V/50Hz with UK Plug (Plug Type G) UV-SP-UV-365MAXMHC/FB
Request Pricing
Spectro-UV uVision MAX UV-365MAXMHC/FA - 220V - 240V/50Hz with Australia Plug (Plug Type I) UV-SP-UV-365MAXMHC/FA
Request Pricing
Spectro-UV uVision MAX UV-365MAXMHC/FBR - 220V/60Hz with Brazil Plug (Plug Type N) UV-SP-UV-365MAXMHC/FBR
Request Pricing

UV-365MAXMHC

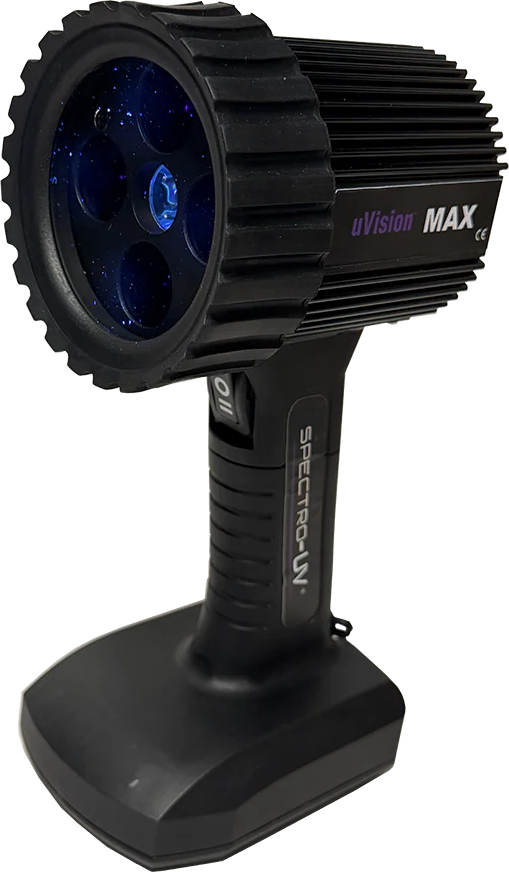

Spectro-UV uVision MAX UV-365MAXZHC - Battery Only Kit Includes: uVision MAX LED 365nm UV-A lamp, In-line AC Power Charger and cord, UV-absorbing safety glasses, In-handle lithium battery & Padded protective case UV-SP-365MAXZHC
$2,333.00
Spectro-UV uVision MAX UV-365MAXZHC/F - 230V/50Hz with European Plug (Plug Type C/F) UV-SP-UV-365MAXZHC/F
Request Pricing
Spectro-UV uVision MAX UV-365MAXZHC/FA - 220V - 240V/50Hz with Australia/China Plug (Plug Type I) UV-SP-UV-365MAXZHC/FA
Request Pricing
Spectro-UV uVision MAX UV-365MAXZHC/FB - 230V/50Hz with UK Plug (Plug Type G) UV-SP-UV-365MAXZHC/FB
Request Pricing
Spectro-UV uVision MAX UV-365MAXZHC/FBR - 220V/60Hz with Brazil Plug (Plug Type N) UV-SP-UV-365MAXZHC/FBR
Request Pricing
