Baugh & Weedon MY-3 Hand Held Inspection Yoke

Baugh & Weedon MY-3 Hand Held Inspection Yoke

Portable, Lightweight & Rugged

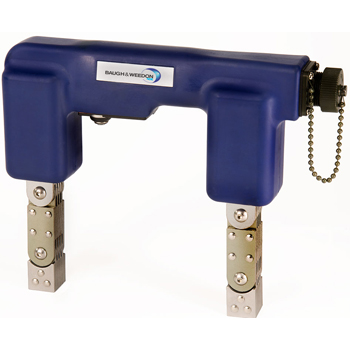

The MY-3 is a small, handheld and lightweight electromagnetic yoke encapsulated in a rugged housing that makes it extremely durable.

The MY-3 features powerful AC magnetizing, adjustable poles and one handed operation. Its small size makes the MY-3 ideal for inspecting different geometries, welds, castings and on-site inspections, especially where there is limited time.

The MY-3 is supplied with a 14.8 ft. (4.5m) detachable cable. Using a detachable cable makes it easy to replace, improve performance, eliminate down-time and extend product life.

Features:

  • AC magnetic field
  • Detachable cable
  • Rugged and reliable construction
  • Lightweight - 5.1 lbs. (2.3 kg)
  • Articulated legs
  • Ergonomic design for comfortable grip
  • UV & White lights available

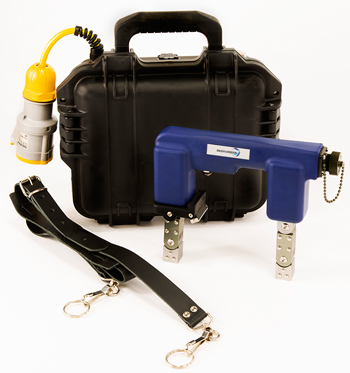

  • Yoke battery pack available - true AC

Technical Specifications

MY-3 Specifications

Power: 110 VAC, 50/60 Hz 220 - 240 VAC, 50/60 Hz
Current: 2.8A 3.5A
Lifting Power: 12 lbs. (5.44 kg) 12 lbs. (5.44 kg)
Magnetizing Power: 110V, 50 Hz: 3,000 AT / 60 Hz: 2,800 AT 220V, 50 Hz: 5,400 AT / 60 Hz: 3,800 AT
Available Pole Distance:    Center Pole Distance: 5.7" (145mm)
Minimum Pole Distance: 2.95" (75mm)
Maximum Pole Distance: 8.27" (210mm)
Weight: 5.1 lbs. (2.3 kg) 5.1 lbs. (2.3 kg)
Dimensions: 7.2" x 9.0" x 1.8" (182 x 230 x 45mm) 7.2" x 9.0" x 1.8" (182 x 230 x 45mm)
Power Cable Length: 14.8 ft. (4.5m) 14.8 ft. (4.5mm)
Duty Cycle: 2 sec ON, 2 sec OFF 2 sec ON, 2 sec OFF
Battery Pack Specification

Working Temperature: 41° - 95°F (5° - 35°C) (<50% R.H.)
Storage Temperature: -50° - 113°F (10° - 45°C) (<80% R.H.)
Output: PP-42: 42 - 44VAC modified sine wave, max 7A
PP-110: 110VAC pure sine wave, max 5A
PP-230: 230VAC modified sine wave, max 3.7A
Intended Use: Electromagnet in maximum 25% duty cycle
Power: 12.6V LiFePo battery, approx 1 day use on 110V or 230V, 4 - 8 hrs. on 42V.
Use depends on type of electromagnet and intensity.
Low Battery Indicator: Power pack has on-board "beep" alarm, which sounds when battery almost empty.
Always recharge as soon as possible.
Dimensions: 12.2" x 4.7" x 9.8" (31 x 12 x 25 cm)
Weight: PP-42: 11.5 lbs. (5.2 kg)
PP-110: 9.25 lbs. (4.2 kg)
PP-230: 9.25 lbs. (4.2 kg)
Protection Class: IP54
Charging Cycles: Up to 2,000 to 80% capacity, depending on the type of electromagnet, temperature and use.

Product Literature

Description Part # Saved Price Select Option Add to
Baugh & Weedon MY-3 Inspection Yoke, 110V (yoke only) MT-BW-MY3-110 $810.00
Baugh & Weedon MY-3L Inspection Yoke, 110V (yoke w/case) MT-BW-MY3L-110 $840.00
Baugh & Weedon PP-110, 110V Yoke Battery Pack MT-BW-PP110 $1,755.00
Baugh & Weedon PP-220, 220V Yoke Battery Pack MT-BW-PP220 Request Pricing
Baugh & Weedon Induction LED light, UV for MY-3 yoke MT-BW-MY3-UV $385.00
Baugh & Weedon Induction LED light, White Light for MY-3 yoke MT-BW-MY3-WL $260.00
