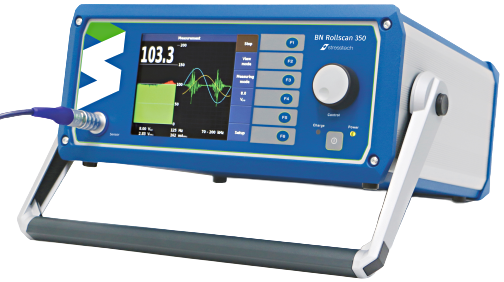

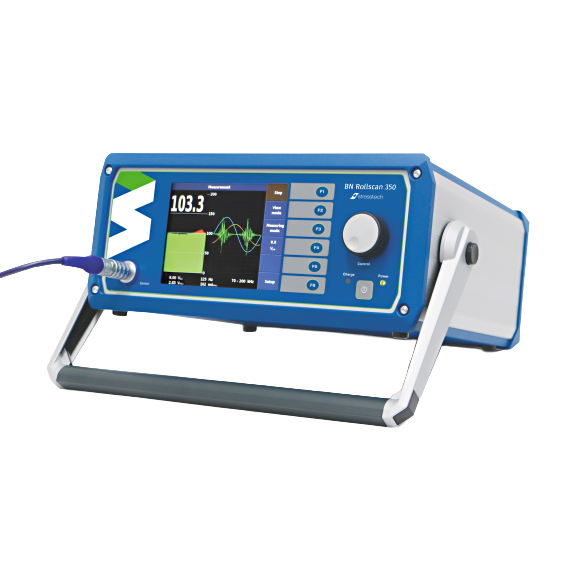

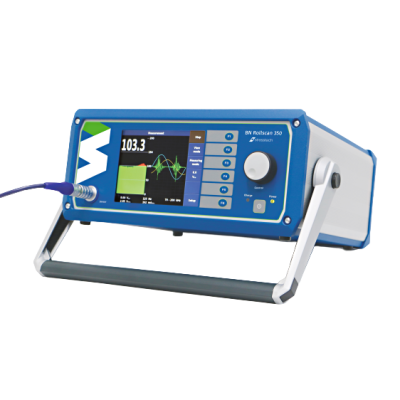

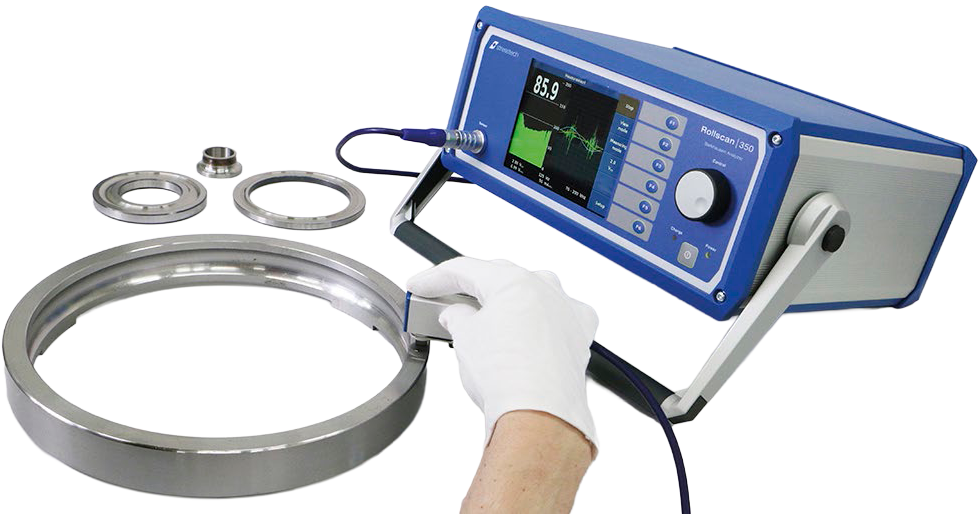

The Barkhausen Noise Rollscan 350 is a portable digital Barkhausen noise analyzer with advanced capabilities for on-site quality control and detection of near-surface defects — grinding burns, heat treatment issues, and stress or microstructure changes in ferritic steels and other ferromagnetic materials. A graphical user interface with oscilloscope display and front-panel controls provides real-time measurement diagnostics, with measurement parameters adjustable directly on the unit or remotely via PC software. The Rollscan 350 can be used as a stand-alone unit or integrated into automated production and laboratory setups.
To inquire or request a quote, please click the button below

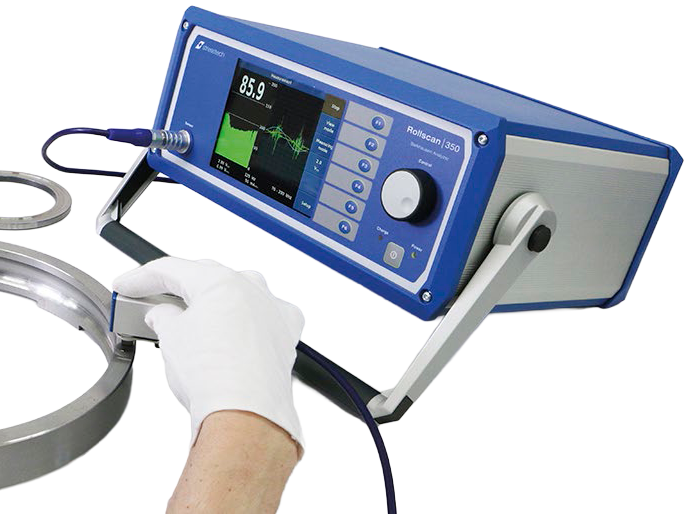

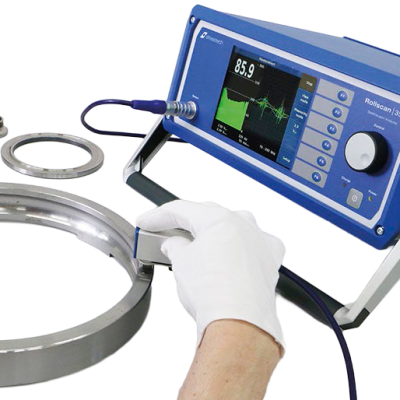

For testing near-surface defects such as grinding burns, heat treatment defects, as well as changes in stress and microstructure in ferritic steels and other ferromagnetic materials. Applications include:
Optimize your manufacturing process and deliver the highest quality components by pairing the Rollscan 350 with Stresstech analysis software. The Rollscan 350 can be completed with either ViewScan for data analysis and reporting, or MicroScan for advanced material analysis and R&D.
|

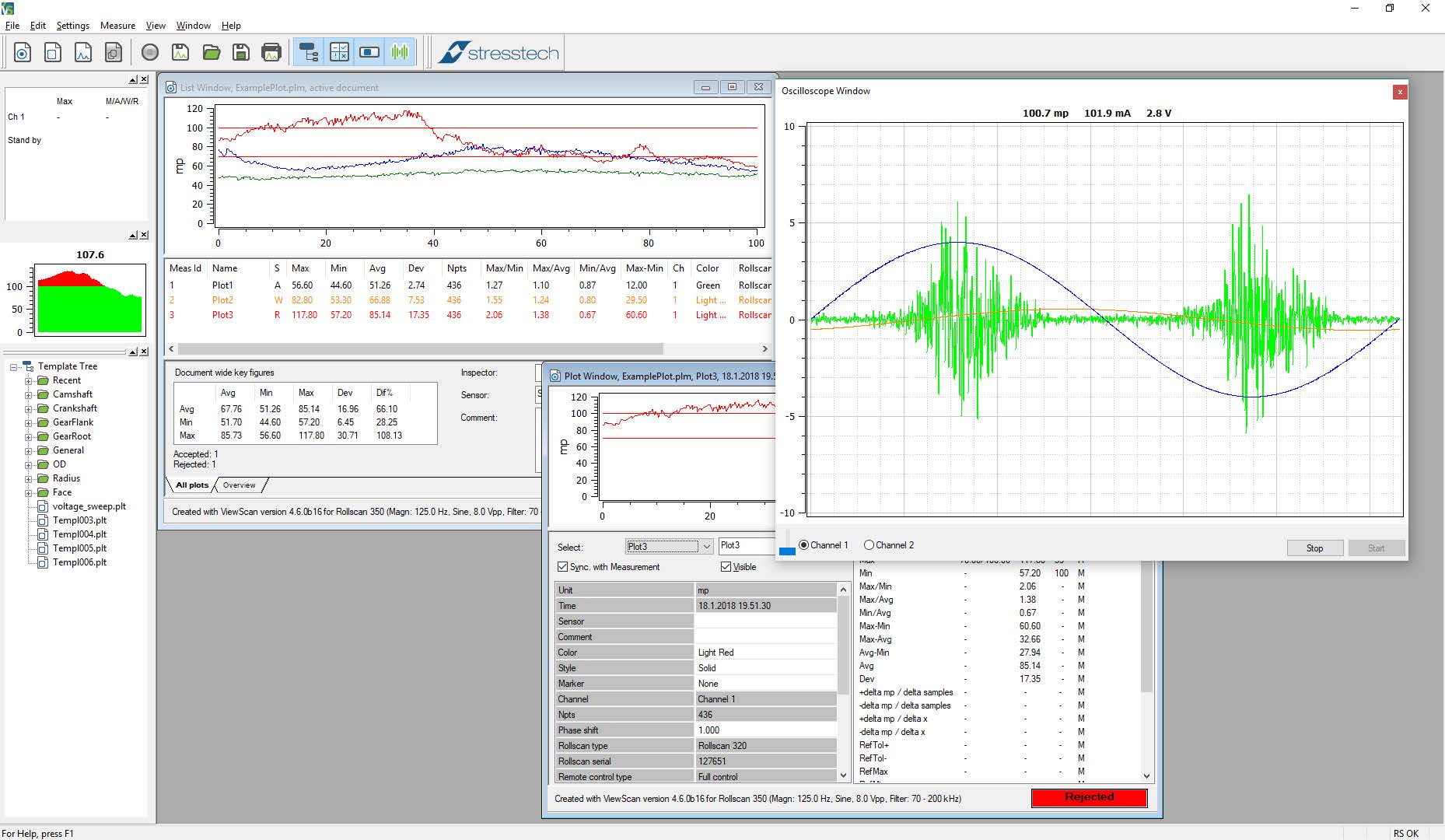

ViewScan — Data Analysis & Reporting The Rollscan 350 can be completed with ViewScan software for data analyzing and reporting. Using ViewScan you can:
|

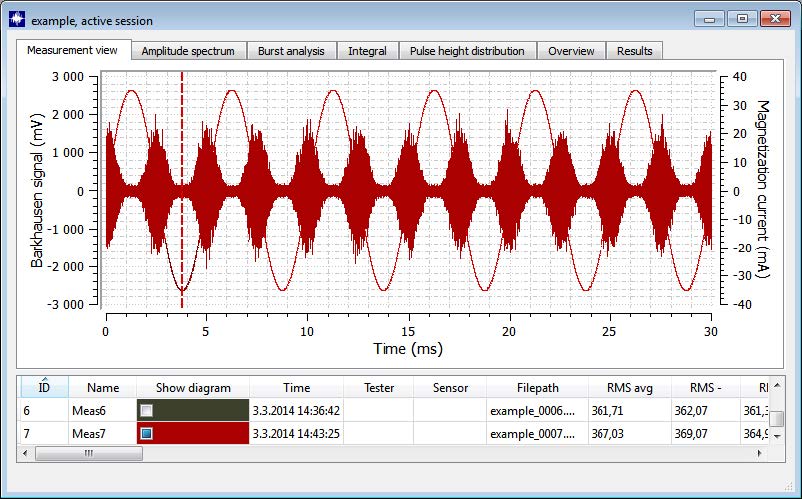

MicroScan — Material Analysis The Rollscan 350 can be completed with MicroScan software for material analysis. The system provides analysis of data with a freely adjustable analyzing frequency filter (RMS, peak value, peak position, FWHM, amplitude spectrum, integral of the bursts, pulse height distribution). Using MicroScan you can:
|
 |
 |
| ViewScan Software pictured above | MicroScan Software pictured above |
| BN Rollscan 350 Technical Specifications | |
| Measurement Channels: | 1 |

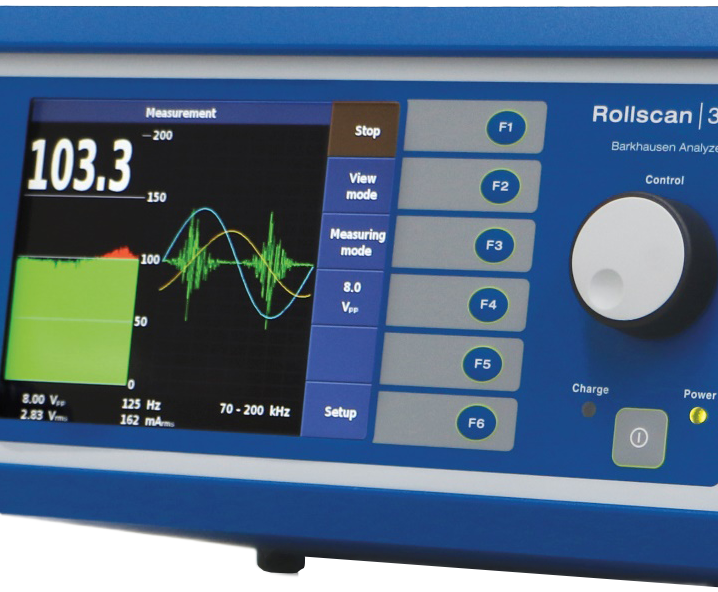

| User Interface: | Graphical UI with oscilloscope display; six function keys and control wheel; multi-language support |
| Magnetizing Frequency Range: | Sine wave 1–1000 Hz; triangle wave 1–150 Hz |
| Analyzing Filter Ranges: | 10–70 kHz; 70–200 kHz; 200–450 kHz |
| Auto Sweeps: | Automatic magnetizing voltage and frequency sweeps to determine optimal measurement parameters |
| Setup Pages: | Magnetization, measurement, communication, miscellaneous functions, diagnostics |
| I/O: | Digital and analog I/O; connector for auxiliary devices |
| PC Connectivity: | Remote parameter control and integration with PC software (e.g., ViewScan) |
| Battery: | Optional |
| Input Voltage: | 100–240 V AC, 50–60 Hz |
| Normal Power Consumption: | 75 VA |
| Maximum Power Consumption: | 100 VA (when batteries are empty) |

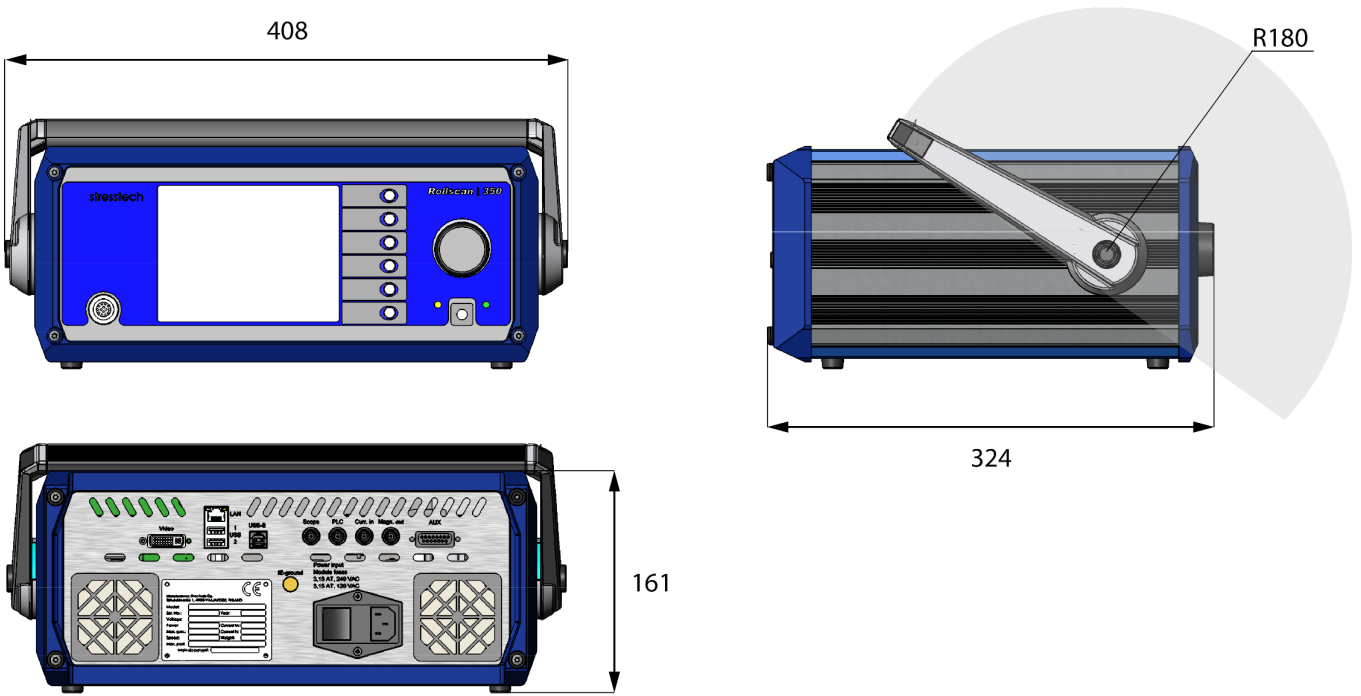

| External Dimensions: | Width: 16.54" (408 mm); Depth: 12.76–14.96" (324–380 mm); Height: 6.34–10.43" (161–265 mm) |
| Weight: | 15.0 lbs (6.8 kg); 19.4 lbs (8.8 kg) with batteries |
