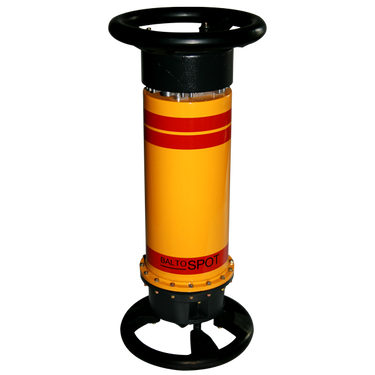

Balteau GFC165 Portable Generator

Balteau GFC165 Portable Generator

Overview

The GFC165 is a panoramic portable unit derived from Balteau's well known Crawler series but designed to be operated on field without mechanical carriage. It will easily surpass the poor contrast of Isotopes and will be a very interesting replacement in lower thickness ranges where Isotopes are generally not allowed. In combination with a GFD (Directional) or a CERAM, the GFC165 is the ideal machine for field applications where the unit needs to be frequently moved or inserted in tiny spaces. Guard rings can be removed and a cradle can be used to perform difficult inspections.

Common applications include: Oil & Gas, Shipyard building & Building sites, Petrochemical & Power plants, Tanks, reservoirs & pressure vessels, Inspection companies & training centers, Conventional films or CR applications

Features

  • High frequency
  • Air cooled
  • Panoramic tubehead
  • Unique energy recovery module
  • Rugged and light control unit
  • Safety first, x-ray start with 2 buttons
  • Full automatic preheating
  • Cables with reduced size and weight
  • Extremely compact & lightweight
  • Factory set beam homogeneity
  • Low power requirement

Advantages

  • High stability output dose
  • Lightweight
  • Including a Geiger-Müller detector
  • Low power consumption
  • Unmatched safety
  • Very reliable
  • Long term stable density
  • Ergonomic guard rings
  • CANON mil. metallic connectors

Control Unit Options

Each control unit features: 1 kV min step, 0.1 mA min step, 1 second to 99 minutes time min step, 100 memories/last exposure, and a display with 4 lines and green back lighting.

CF2000

Default Kit Control Unit

Designed to cope with harsh environment and bad power supplies for a stable and constant output no matter what power feeds the unit. The waterproof ergonomic keypad and the large robust handles attached on the side are making it ideal for on site jobs as well as desktop uses. Weighs 12.5 kg.

CF2000 Details

Hand-X

Optional Wireless Remote Control

A revolutionary wireless remote control which can operate a generator remotely from up to 100 m in open fields. Perfect for cluttered environments where cables could be at risk or not long enough. With a built in Dosimeter and controls that are always at your fingertips, the Hand-X offers extra security and safety. 8 hour charge capacity and weighs 900 g.

Hand-X Details

Technical Specifications

GFC165 Specifications

High Voltage Range 50 - 160 kV
Tube Current Range 1 - 5 mA
Maximum Anode Power Dissipation 800 Watt
Beam Angle 360° x 40°
Focal Spot Size (IEC336) Ø4 x 0.9 mm
Steel Penetration at Max* 14 mm
Max Recommended Temp 50  °C
Temperature Switch 70  °C
Inherent Filration 7 mm (Al)
Anode Cooling Type Air
Duty Cycle 100%
Mains 180 - 260 V
Weight 12.3 Kg (without rings)
Tubehead Glass
Control Unit CF2000 or Hand-X

* FFD= 700mm/Film Carestream Industrex AA400/D=2.0/t=10min

Kit Includes

GFC165 Standard Kit Includes

  • GFC 165 X-Ray Generator with Guard Rings
  • Centering Rod and Diaphragm Holder
  • Telescopic Centering Rod
  • CF2000 Control Unit
  • Mains Cable (10M)
  • Connection Cable (20M)
  • Bag for Cables & Accessories
  • Maintenance and User's Guide
  • Quality Test Report
Optional Equipment

  • Hand-X Control (In place of CF2000 Control)
  • Port Blocking Plug
  • Warning Light with 20m Cable
  • Protective Cradle
  • Four Legs Support with Cradle
  • Essential Spare Parts Kit
  • Laser Centering Device
  • Kit Warning Light Assembled on Generator
  • Transport Case
  • 110VAC to 260VAC Adaptor
