Affordable, Lightweight & Durable

The AUT Solutions Pit and Dent Gauge is a simple and rugged tool for measuring pits, dents and gouges. This modular tool kit consists of precision CNC machined aluminum components with a durable anodized finish. Setup is fast, easy, and does not require any tools. Both premium and economy kits come with magnetic attachments to hold the gauge to ferrous materials. More importantly, all components within the premium kit consist of Made in the USA parts and we utilize one of the world’s best DTI’s, the Starrett gauge. We also offer an economy kit which uses a low cost but high quality Fowler gauge to help keep your cost down while still providing you with accurate readings.





Features:

  • IP67 rated dial indicator (premium kit only)
  • 1 inch [25mm] measuring range
  • 0.0005” measurement accuracy
  • Dial face rotates 360° for easy reading. (premium kit only)
  • Measures in inches and millimeters
  • Simple extension arm installation
  • Magnetic arms Removable standoffs, allows measurement over protrusions

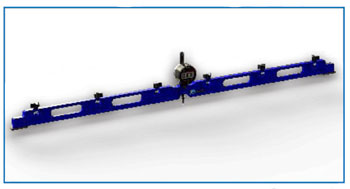

  • Modular design allows for custom size
  • Fast assembly / disassembly
  • Lightweight

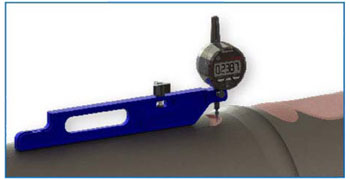

A blind end gauge holder with one extension measuring corrosion next to a weld seam.

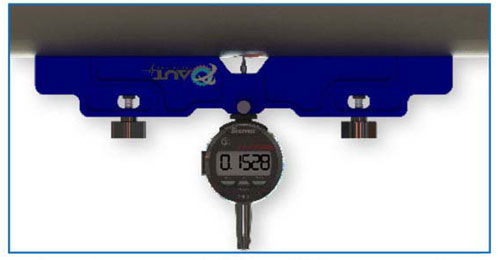

A center gauge holder with two magnetic extensions being used upside down with the dial indicator face rotated for easy reading.

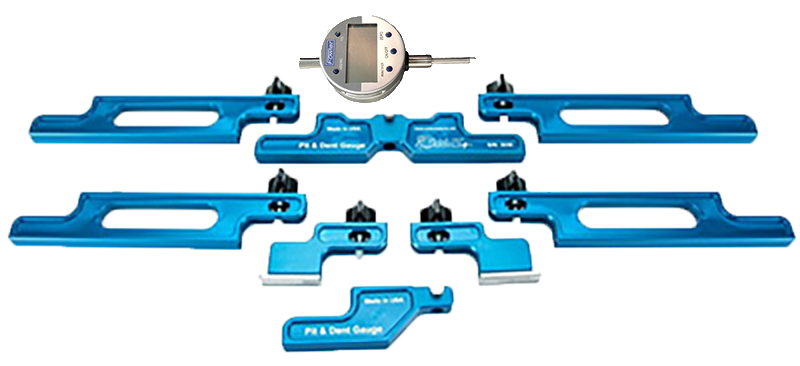

Economy Kit Includes:

GA-AUT-PG-KIT-ECONOMY

  • 1 Fowler dial indicator 1” [25mm] stroke
  • 2 replaceable indicator tips
  • 1 center gauge holder 9” [228mm]
  • 1 blind end gauge holder 5” [127mm]
  • 2 extension arms 7.5” [190mm]
  • 2 magnetic extensions 1.625” [41mm]
  • 2 standoffs .2” [5.08mm]
  • 1 custom carry case
  • Max length 27.25” [692mm]
  • Shipping case

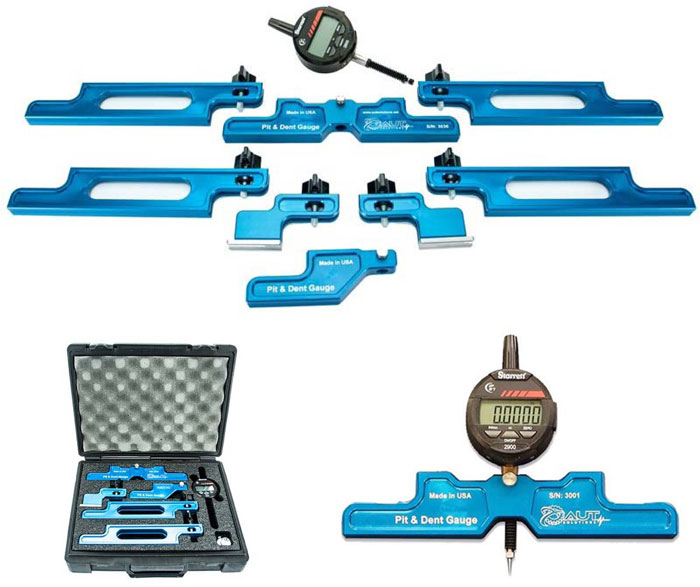

Premium Kit Includes:

GA-AUT-PG-KIT-PRE

  • 1 Starrett dial indicator 1” [25mm] stroke
  • 2 replaceable indicator tips
  • 1 center gauge holder 9” [228mm]
  • 1 blind end gauge holder 5” [127mm]
  • 4 extension arms 7.5” [190mm]
  • 2 magnetic extensions 1.625” [41mm]
  • 2 standoffs .2” [5.08mm]
  • 1 custom carry case
  • Max length 42.25” [1073mm]
  • Shipping case

Certification Note:

  • Manufacturer Certificate of Conformance is available upon request at no additional charge. Please specify during checkout.

  • *The manufacturer does not offer calibration services. If required, please contact us for more details.

Product Literature

Description Part # Saved Price Select Option Add to
Manual Pit & Dent Gauge PREMIUM KIT Includes 1 Starrett digital DTI w/ 1" (25mm) measurable length, 4 x 7.5" (190.5mm) long extension arms, 2 DTI bases (1 blind side), 2 magnetic extensions, 2 magnetic base standoffs, case, spare tip & manual GA-AUT-PG-KIT-PRE $1,750.00
Economy Pit & Dent Gauge Kit comes with Fowler Digital DTI with 1" (25mm) measurable length, 2 - 7.5" (190.5mm) long extension arms, 2 DTI bases (1 blind side), shipping case, spare tip & manual GA-AUT-PG-KIT-ECONOMY $1,250.00
