Insight Vision Opticam Sewer Camera System

Insight Vision Opticam Sewer Camera System

Rugged, Simple & Portable

The Opticam is a rugged, simple and portable sewer camera inspection system with a user-friendly keypad and easy one-touch recording to a USB drive. Virtually plug and play with "One-touch" on demand recording, start recording your inspections today. Easily record inspection data and client information using the on-screen text writer and footage counter. A built in microphone and speaker allows you to record your voice to videos and then play the video back on the 10.4 inch LCD Monitor. Capture every detail with the 1.3" modular, color self-leveling camera head for inspecting 3" up to 12" pipes. An "always on" built-in sonde broadcasts at 512 Hz frequency to locate with a 512Hz locator. Get into more inspections with a dependable sewer inspection camera that is built for multiple applications.





Key Features

  • Large 10.4" LCD Screen
  • 1.3" Self-Leveling Color Camera Head with Modular Design
  • "Always On" Built-in 512Hz Sonde - Broadcast a 512Hz signal to be locatable with a locator.
  • 0.475" Premium Push Rod Cable with Flexi-Guard Spring
  • On-Screen Distance Counter - View the distance pushed and displayed on the screen.
  • One Touch Recording to USB - Record and take pictures during inspection.
  • Wi-Fi Streaming with Apple or Android App - View, record, snapshot and share inspection videos.
  • Built-in Speaker and Microphone - record voiceover video and play it back.
  • Fully Qwerty Keypad for Text Writing
  • Power with 120V AC, 12V DC or Battery (optional)

Videos

Technical Specifications

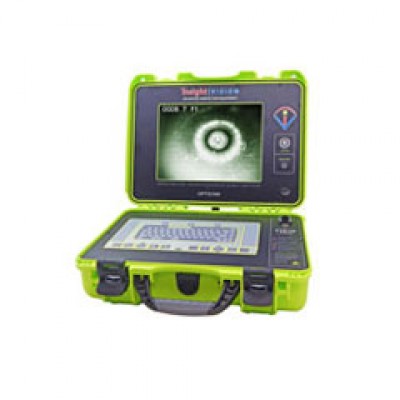

Command Module Specifications

Case Dimensions (WxHxD): 14.5" x 5" x 11.25"


Data Storage: 8GB USB Drive
Keyboard: Full "Qwerty" Style Membrane
Distance Counter: On Screen in Feet or Meters
Video Picture Format: H.264 JPEG
Controls: One Touch Recording Snapshot
Weight: 8 lbs.
LCD Size: 10.4"
Power Source: 12V, 5 Amp DC, AC and Optional Battery
Mini Camera Specifications

Dimensions (DxL): 0.85" x 1.3"
Self-Leveling: No
Camera Resolution: 1280 x 960 (600 TV Lines)
Weight: 2.4 oz. (with sonde & pigtail)
Image Sensor: 1/4" PH3299
Imager Sensitivity: 0.5 Lux
Camera Body: Stainless Steel
Camera Lens: Sapphire Glass
Light Ring: 12 Dimmable Super Bright LEDs
LED Window: Polycarbonate
Camera Head Specifications

Dimensions (LxD): 2" x 1.3"


Self Leveling: Yes
Camera Resolution: 640 x 480 (420 TV Lines)
Weight: 5.9 oz.
Image Sensor: 1/4" CMOS
Image Sensitivity: 0.025 Lux
Camera Body: Stainless Steel
Camera Lens: Sapphire Glass
Light Ring: 12 Dimmable Super Bright LEDs
LED Window: Polycarbonate
Mini Reel Specifications

Cable Length: 150' Length
Cable Exterior: Black Hytrel Jacket
Cable Core: Fiberglass Rod
Push Rod Diameter: 0.36" OD
Dimension (LxWxH): 17.5" x 8.75"x 23.5"
Weight: 24.5 lbs.
Sonde Frequency: 512 Hz
Protective Skids: 1" & 2" Included with the System
Full Size Reel Specification

Cable Length: 200 - 300 - 400 ft. Length
Cable Exterior: Polypropylene Jacket
Cable Core: 0.177" Fiberglass Rod
Push Rod: 0.475" OD
Dimensions (LxWxH): 30" x 16.5" x 32.5"
Weight: 62 lbs.
Sonde Frequency: 512 Hz
Protective Skids: 2" & 3" Included with System
Dimensions & Weight

Item Description Weight Dimensions
Opticam System Reel - 200' 200' Pushrod w/Camera, Frame, Wheel Set 72 lbs. 35" x 29" x 18"
Opticam System Reel - 300' 300' Pushrod w/Camera, Frame, Wheel Set 82 lbs. 35" x 29" x 18"
Opticam System Reel - 400' 400' Pushrod w/Camera, Frame, Wheel Set 92 lbs. 35" x 29" x 18"
Opticam Command Module w/ Accessory Bag Opticam Command Module w/Accessory Bag 14 lbs. 19" x 15" x 11"
Opticam Command Module Opticam Command Module 10 lbs. 19" x 15" x 11"
Locator Locator 512Hz 7 lbs. 10" x 10" x 37"
Push Rod - 200' Push Rod - 200' ONLY 25 lbs. 29" x 29" x 7"
Push Rod - 300' Push Rod - 300' ONLY 35 lbs. 29" x 29" x 7"
Push Rod - 400' Push Rod - 400' ONLY 45 lbs. 29" x 29" x 7"

Opticam System Kit Includes

  • Opticam Instrument
  • Debris Reel Cover
  • 2" & 3" Skids
  • S-Tool Removal Tool
  • 8GB USB Memory Stick
  • Power Cords
  • Accessory Bag
  • User Manual

Additional Accessories

  • Auxiliary Battery Pack - holds up to 6 hrs.
  • Additional 128GB of Internal Memory
  • Insight Vision's 6" & 8" Centering Skids
  • Insight Vision's 512Hz Frequency Locator


M18 Battery Adapter

  • Plug-N-Play compatible with existing Insight Vision systems
  • Up to 5 hours of operation time with one M18 Tool battery
  • Safely adapts the power from 18 volts to 12 volts to avoid burn out of Insight Vision camera system.
  • Our super strong RAM Tough Claw clamp will hold your battery adapter tight with rubber pads to prevent slipping or scratching.

Note: Battery and Charger are not included and must be sourced elsewhere.

Product Literature

Description Part # Saved Price Select Option Add to
Insight Vision Opticam Min-Reel System, 150 ft. Reel, Including: Accessory bag, 1” and 2” skids, 16GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203005
Request Pricing
Insight Vision Standard Opticam System, 200 ft. Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203001
Request Pricing
Insight Vision Standard Opticam System, 300 ft. Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203002
Request Pricing
Insight Vision Standard Opticam System, 400' Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203003
Request Pricing
Insight Vision 12 Volt M18 Battery Adapter (Adapter Only) RV-IV-200035
Request Pricing
Insight Vision 15 Volt M18 Battery Adapter (For Older Systems - Not Compatible with Current Version) RV-IV-200036
Request Pricing
Insight Vision Converter: Dewalt 20V to M18 RV-IV-125004
Request Pricing
Insight Vision Rolling Centering Skid (recommended for 6”-14” diameter pipe) RV-IV-178020
Request Pricing
Insight Vision Locator 512Hz with Case RV-IV-553008
Request Pricing
