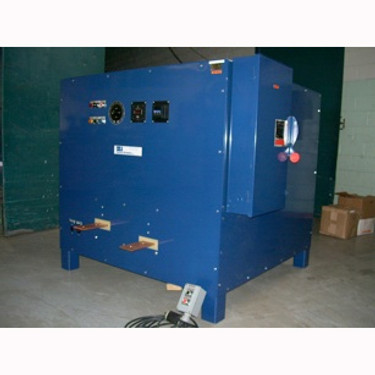

15,000 amp to 20,000 Amp Reversing DC Power Pack

15,000 amp to 20,000 Amp Reversing DC Power Pack

15,000 amp to 20,000 Amp Reversing DC Power Pack

power pack

Features:

  • 460 / 480 VAC 3 phase input @ 350 amp maximum
  • Reversing DC demag, 60 steps, fully electronic
  • Full wave 3 phase DC output rated for 15,000 or 20,000 amps with a load of 4 x 30 feet with 4/0 cable in parallel. Lower output current units also available (6,000 amp or 10,000 amp).
  • Rugged scr assembly, conservatively rated to last a lifetime, weight: 450 lbs.
  • Massive 3 phase power transformer for high reliability, weight: 900 lbs.
  • Digital shot timer
  • Digital Ammeter, with last shot memory hold
  • Infinitely variable current control
  • Remote control cable and 120VAC / 5 AMP accesory outlet
  • 54" x 54" x 48" steel cabinet, total unit weight approximately 2,000 lbs.
  • Optional multiple outputs for multi vector inspection
  • Optional duty cycle limit timer
  • 3 year warranty

Product Literature

Description Part # Saved Price Select Option Add to
15,000 amp to 20,000 Amp Reversing DC Power Pack MT-MR-M20000 Request Pricing
