Spectronics Tritan 365 Series UV-A Lamp


Email Print
Spectronics Tritan 365 Series UV-A Lamp
Product Description
Additional Info
Product Literature

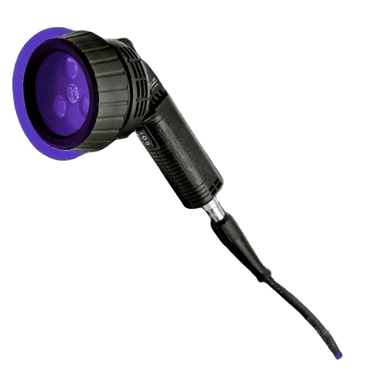

The Tritan 365 Series UV-A Lamp

A Versatile, High-Intensity, Multi-LED, Broad Beam UV-A Inspection Lamp!

TRITAN™ 365 Series NDT lamps feature three ultra-hi-flux UV-A LEDs for fluorescent inspection, plus a convenient white light LED to scan for surface flaws and illuminate dark work areas. Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps.

Available in three models to meet your specific NDT inspection requirements: high-intensity, standard-intensity and standard-intensity with integral black light filters.

Features:

Choice of high-intensity model with a nominal steady-state UV-A intensity of 9,000 µW/cm2 or two standard-intensity models, both with a maximum UV-A intensity of less than 5,000 µW/cm2 at 15 inches (38 cm)
Large 4 inch (10 cm) diameter coverage area at 15 inches (38 cm), with a minimum UV-A intensity of 2,000 µW/cm2
Low visible light emissions - less than 2 foot candles (22 Lux)
Grip-mounted, three way rocker switch (white light / off / UV) for easy control of light sources
Built-in fans keep LEDs cool to maintain optimum light output during extended use
Rubber bumper with Borofloat® glass lens protects LEDs from damage
Modular construction for easy servicing in the field
Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy duty power cord with AC plug and rubber boot. Also available are Optional in-line power supply or industrial power supply with cord sets (sold separately). All power supplies available in 120V, 230V, 240V and 100V models.
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI
Certificate of Compliance for both output and wavelength measurements is supplied with each lamp
UV-absorbing spectacles and a soft carrying case are included


TRITAN™365M Series portable battery-operated AC/DC lamp kit includes: TRITAN™ 365 UV lamp, rechargeable NiMH battery pack, AC and DC cord sets, smart AC charger, UV-absorbing spectacles and a soft carrying case. AC charger available in 120V, 230V, 240V and 100V versions.

spectronics-tritan365-m

Specifications:

spectronics-tritan-365 Model  Nominal Steady-State
UV-A (365 nm) intensity
at 15 inches (38 cm)
Visible light measurement  Diameter of UV-A coverage at 15 inches (38 cm)
TRI-365HB
High-Intensity, with clear filter
9,000 µW/cm2 < 2 foot candles
(22-lux)
4 inches (10 cm)
TRI-365DB
Standard Intensity with clear filter
< 5,000 µW/cm2 maximum < 2 foot candles
(22 lux)

4 inches (10 cm)



Light Source: 3 UV-A LEDs and 1 White Light LED

Lamp Style: Pistol Grip

Lamp Head Diameter: 3.25 inches (8.25 cm)

Length: 8 inches (20.3 cm)

Weight: 1 lb. (454 g)

White Light LED Intensity: 400 foot candles (4,036 lux)

AC Lamp (TRI-365DB, TRI-365HB): 120 VAC*

AC / DC Lamp (TRI-365MDB, TRI-365MHB): 120 VAC* / 12 VDC

Battery Pack:

Type: 12V, NiMH (rechargeable)

Run Time: 3.5 hours (continuous)

Charge Time: 2 hours

* Also available in 230V, 240V and 100V Versions.

Note: All Kits include Carrying Case and UVS-30 Spectacles.

Note: The following models have been discontinued: UV-SP-TRI365MDBB, UV-SP-TRI365DBB, UV-SP-TRI365DBB-20

additional information with red arrow

spectronics-tritan-365

spectronics-tritan-365

Please Note: To add an item/multiple items to your shopping cart, check the corresponding box/boxes and click "Add To Cart"
Description
Part #
Price
Product Name Part # Price Qty
TRI365-HB Includes: High Intensity (3) UV-A LEDs and (1) White Light LED with FP-365 Borofloat Filter Protector, Heavy-Duty 8 Foot AC Cord, UVS-30 Spectacles and Soft Carrying Case UV-SP-TRI365HB $1,320.00
TRI-365HB/20 Includes: TRI-365HB with Heavy-Duty 20 Foot AC Cord UV-SP-TRI365HB-20 $1,370.00
TRI-365MHB Includes: TRI-365HB with BP-30 Metal Encased Rechargeable NiMH Battery Pack, BR-150A Smart AC Charger, PSA-250A AC/DC Adapter UV-SP-TRI365MHB $1,520.00
TRI-365DB Includes: Standard Intensity (3) UV-A LEDs and (1) White Light LED with FP-365 Borofloat Filter Protector, Heavy-Duty 8 Foot AC Cord, UVS-30 Spectacles and Soft Carrying Case UV-SP-TRI365DB $1,320.00
TRI-365DB/20 Includes: TRI-365DB with Heavy-Duty 20 Foot AC Cord UV-SP-TRI365DB-20 $1,370.00
TRI-365MDB Includes: TRI-365DB with BP-30 Metal Encased Rechargeable NiMH Battery Pack, BR-150A Smart AC Charger and PSA-250A AC/DC Adapter UV-SP-TRI365MDB $1,520.00
