Spectro-UV EDGE 4 Wash Station Lamp

Spectro-UV EDGE 4 Wash Station Lamp

Flood Lamp Engineered Specifically for Wash Stations

Previously a Spectroline / Spectronics Product

 Water Proof & Durable

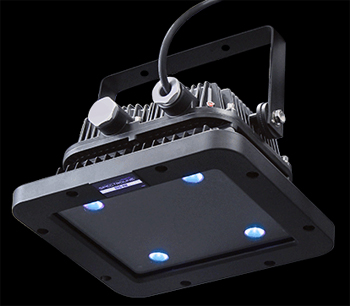

The Edge 4 is a flood lamp engineered specifically for wash stations. It provides a very wide area of coverage without a high intensity. The IP65-rated housing allows the lamp to work in wet and dirty environments while heat sinks keep the lamp cool without the need for a fan, so no dust or water can enter. Four UV-A LEDs provide a wide, uniform beam that is highly consistent and reliable.



Features

  • Ideal for Wash Stations
  • IP65 rated – rugged housing is dust-proof and water resistant
  • Heat-dissipating housing. Fan-less and cool running
  • Adjustable mounting bracket

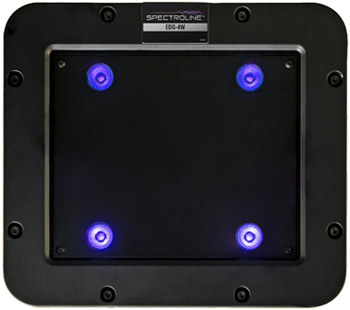

  • 4 UV-A LEDs with long-lasting UV-A lenses
  • Low intensity (1,400 μW/cm2 at 48 inches)
  • Wide area of coverage (22 x 22 inches with a minimum UV-A intensity of 200 μW/cm2 at 48 inches)
  • Less than 1 foot-candle visible light emission
  • Meets EN ISO 3059 standard on UV-A output for the removal of excess penetrant
  • Includes Certificate of Light Output with each lamp

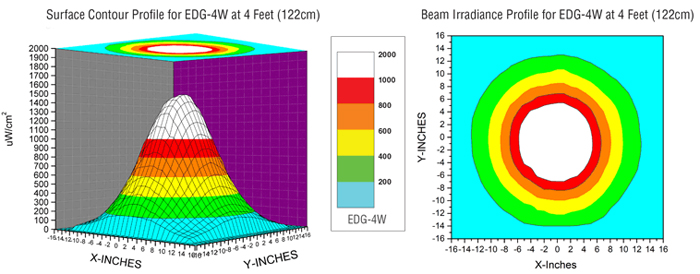

Intensity Model

Technical Specifications

EDGE 4 Specifications

Spectro-UV EDGE 4 Technical Specifications
Nominal Steady-State Intensity at 48" (122 cm) 1,400 μW/cm2
UV-A Coverage Area at 48" (122 cm) at minimum 200 μW/cm2 22 x 22" (56 x 56 cm)
Nominal Steady-State Intensity at 72" (183 cm) 670 μW/cm2
UV-A Coverage Area at 72" (183 cm) at minimum 200 μW/cm2 24 x 24" (61 x 61 cm)
Nominal Steady-State Intensity at 96" (244 cm) 380 μW/cm2
UV-A Coverage Area at 96" (244 cm) at minimum 200 μW/cm2 25 x 25" (63.5 x 63.5 cm)
LED Filter Protective clear filter
General Specifications
Light Source 4 UV-A LEDs
Lamp Style Panel Flood Lamp
Dimensions (LxWxH) 11 x 14 x 9" (28 x 36 x 23 cm)
Weight 14 lbs (6.4 kg)
Power Requirements AC Power (main AC power cord supplied with the unit)
Cooling System Fanless

Code Compliance

EDGE 4 Code Compliance

Meets:

  • EN ISO:3059
Description Part # Saved Price Select Option Add to
Spectro-UV EDGE 4, Low Intensity, IP65 Rated, Fanless Flood Lamp for Wash Stations, Includes 4 UV-A LEDs, Clear Glass Filter Assembly (131162), 4 Blacklight Filters, UVS-30 Spectacles & 8' AC Cord and Certificate of Light Output (100-120VAC, 50-60Hz) UV-SP-EDG-4W $1,560.00
