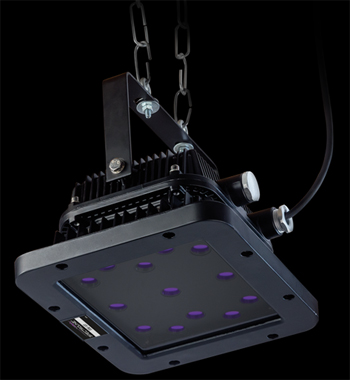

Spectro-UV EDGE 13 LED UV-A Overhead Lamp Series

Spectro-UV EDGE 13 LED UV-A Overhead Lamp Series

4 Models of Overhead LED UV-A Flood Lamp with IP65 Rating, Cool Fanless Design and Gangable Lamps

Previously a Spectroline / Spectronics Product

 Superior Reliability and Performance

The EDGE 13 Series is the only overhead LED UV-A flood lamp that guarantees an IP65 rating, stays cool without a fan, can be ganged together with multiple lamps to expand coverage area. Available in 3 models to meet your exact specifications, no matter the job level:

EDG-13T - High Intensity Penetrant Station Lamp for a wide coverage of area and the best fluorescent indications possible.
EDGE-13SBLC - RRES 90061 and ASTM E3022-15 compliant for Aerospace industry inspections of large parts.
EDG-13HC - High-intensity ASTM E3022 compliant broad-beam flood lamp for overhead nondestructive testing inspections.
Note: The EDG-13H has been discontinued.



Features

  • IP 65 rating: the lamp is dust-proof and water-resistant
  • Meets ISO EN 3059 specifications for fluorescent inspection
  • Cool running, fanless design
  • Wide areas of coverage for optimal fluorescent response
  • RRES 90061 Compliant Version Available (EDG-13SBLC)
  • ASTM E3022 Compliant Version Available (EDG-13SBLC and EDG-13HC)
  • AITM6-1001 Compliant Version Available (EDG-13SBLC)
  • Long-lasting UV-A lenses protect against solarization
  • Integral black-light filters (EDG-13SBLC and EDG-13HC)
  • Gangable – link lamps together using single power source for greater coverage area

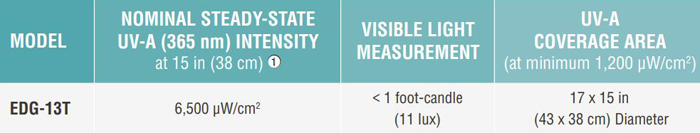

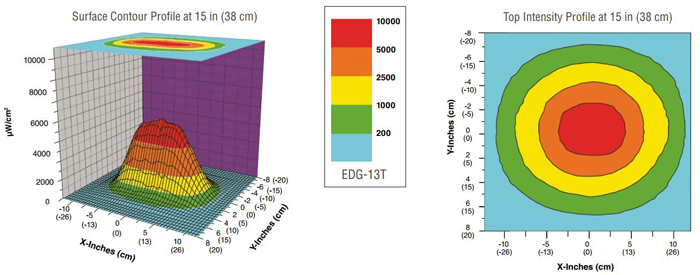

EDG-13T Intensity Model

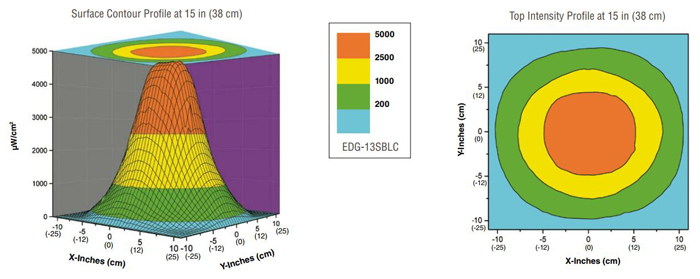

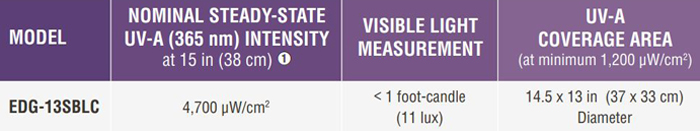

EDG-13SBLC Intensity Model

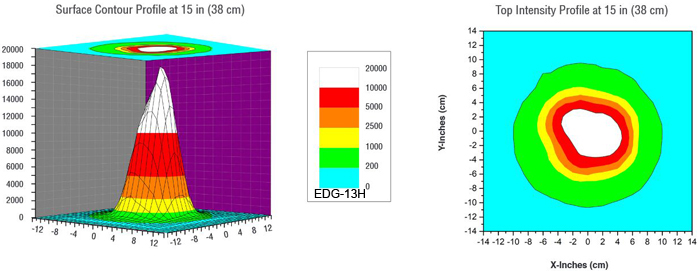

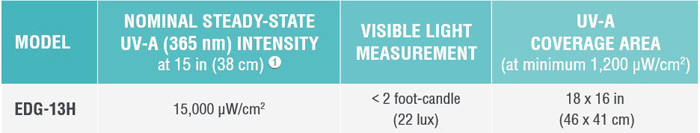

EDG-13H Intensity Model

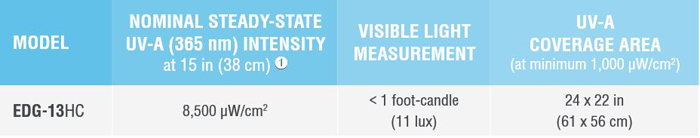

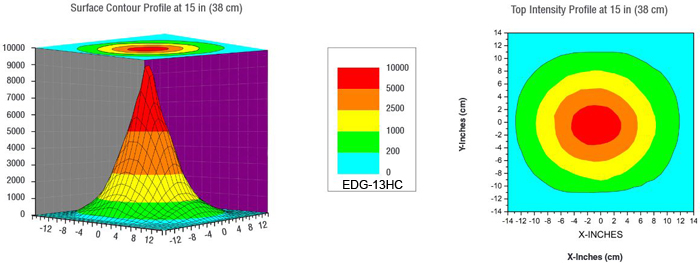

EDG-13HC Intensity Model



Technical Specifications

EDGE 13 Technical Model Comparison

Spectro-UV EDGE 13 Model Comparison
Specification EDG-13SBLC EDG-13HC EDG-13H EDG-13T
Rolls-Royce RRES 90061 ✓ X X X
ASTM E3022-15 Standard ✓ ✓ X X
EN ISO 3059 ✓ ✓ ✓ ✓
Nominal Steady-State UV-A Intensity at 15" 4,700 μW/cm2 8,500 μW/cm2 15,000 μW/cm2 6,500 μW/cm2
UV-A Coverage Area at 15" and min 1,000 μW/cm2 14.5 x 13" (37 x 33 cm) 24 x 22" (60 x 56 cm) 18 x 16" (45.7 x 40.6 cm) 17 x 15" (43 x 38 cm)
Filter Integral UV-A Pass Filters Clear Filter
Thermal Cut-Off Circuitry √ X
Visible Light Measurement < 1 foot-candles (11 lux) < 2 foot-candles (11 lux) < 1 foot-candles (11 lux)
EDGE 13 General Specifications

Spectro-UV EDGE 13 General Specifications
Light Source 13 UV-A (365 nm) LEDs
Lamp Style Panel Flood Lamp
Dimensions 11 x 14 x 9" (28 x 36 x 23 cm)
Weight 14 lbs (6.4 kg)
Power Requirements

AC Power (Main AC power cord supplied with the unit)

(Available in 100-120V, 230V and 240V versions)

Code Compliance

EDGE 13 Series Code Compliance

Models Code Compliance
  Rolls Royce RRES 90061 ASTM E3022-18 EN ISO:3059
EDG-13SBLC ✓ ✓ ✓
EDG-13HC   ✓ ✓
EDG-13H     ✓
EDG-13T     ✓

Product Literature

Description Part # Saved Price Select Option Add to
Spectro-UV EDG-13T, IP65 Rated, EN ISO 3059 Compliant, High Intensity LED UV-A Overhead Penetrant Station Flood Lamp, Includes Certificate UV-SP-EDG-13T
$2,900.00
Spectro-UV EDG-13SBLC, ASTM E3022-15 and RRES 90061 Compliant, IP-65 Rated, UV-A LED Overhead Flood Lamp, Includes Certificate UV-SP-EDG-13SBLC
$2,900.00
Spectro-UV EDG-13HC, High Intensity with AC Control Box (130155), ASTM E3022 Compliant, IP-65 Rated, Fanless Flood Lamp, Includes (13) UV-A Pass Filters, UVS-30 Spectacles (100-120V/50-60Hz) and Certificate UV-SP-EDG-13HC
$2,900.00
Spectro-UV EDG-13H, High Intensity with AC Control Box (130155), IP 65 Rated, Fanless Flood Lamp, Includes (13) UV-A LEDs, Clear Glass Filter Assembly (13116)2), UVS-30 Spectacles (100-120V/50-60Hz) and Certificate UV-SP-EDG-13H
Discontinued Item
