Solid State Systems Standard Machines

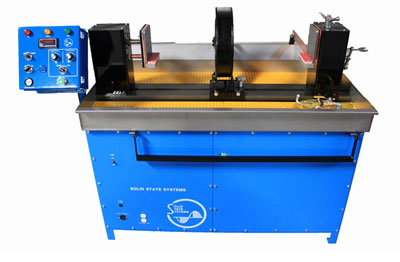

solid-state-systems-compact-60

Features:

  • Meets ASTM-1444 & built-in to MIL-STD-6867C
  • Precision infinitely variable 3 turn Current Control
  • Shot duration of 0.5 seconds (adjustable from 0.3 to 3 seconds)
  • 304 Stainless Steel Tank
  • Powder-coated Steel Frame & Panels
  • Fiberglass Grilles, 20 year life
  • Solid Steel Rails
  • Hank Crank Gear Operated & Positive Lock Tailstock
  • Foot Switch Operated Headstock / Air Chuck
  • 12.5" Coil Standard (larger sizes optional), made using solid copper strip vs. cable and sealed for long life and high output
  • FWDC and/or AC magnetizing current
  • AC and/or Reversing DC Demag available
  • Digital Ammeter with Built-in Hold Feature and Current Flow Indicator
  • Quick Break Feature
  • Full Metal Panels
  • Silicon Rectifiers
  • Swivel mounted Control Panel with Hinged Door
  • Hip Energize Bar
  • Mag & Demag Indicator Lights
  • 240/380/480/575/660 VAC, 60 Hz - Input, 1 or 3 phase (other inputs upon request)
  • Change-over board switches input
  • Secondary SCR control
  • Thermal Protection, auto reset
  • Electronic switching from Head to Coil
  • Solid State Contactors
  • Electronic Plug-in Control Modules with LED fault indicators
  • Bed height: 36.5"
  • 3 year factory warranty


Head Openings: 40", 54", 76", 100", 144"
Coil Sizes: 12.5", 16.5", 20.5", 24.5", 36.5", 48.5"
Input Voltage: 220, 380, 440, 575, 660 VAC / 60 Hz
(other voltages upon request)

Ouptut Current:

Single Phase Machines:
  • AC only 4,000 or 6,000 amps
  • FWDC and AC: 5,000/4,000 or 6,000/4,000
3 Phase Machines
  •  FWDC: 4,000, 6,000, 10,000 amps

Single Phase/ 3 Phase
  • FWDC/AC: 6,000/4,000
  • FWDC/AC: 10,000/6,000



solid-state-systems
  • Sealed Coil
  • Solid Steel Rails
  • Crank / Lock Tailstock
  • Fiberglass Grille
  • Energize Bar


Hoods

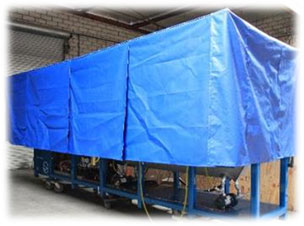

solid-state-systems-standard-curtains  solid-state-systems-theater-style-curtains
Standard Curtains  Theater Style Curtains

Hoods have one Fan / Light Console as standard. Additional Consoles are available on 100" and 144" units.


Options:
  • Oversize Head and Tailstocks
  • Heavy Duty Frame
  • Motorized Coil
  • Motorized Tailstock
  • Motorized Steady Rest
  • Parts Rotator 180 or 360
  • Steady Rests
solid-state-systems-tailstock-headstock
solid-state-systems-plug-in-module

Plug In Modules:

Minimize service calls. Simply identify and replace a malfunctioning module which is indicated by built-in LEDs
