Ray-Check PDI Alternative ASME (DAC) Blocks

Ray-Check PDI Alternative ASME (DAC) Blocks

Economical PDI Alternative ASME Blocks

PDI Alternative ASME blocks are manufactured in accordance with the requirements of the Performance Demonstration Initiative (PDI) Procedure No. PDI-UT-1, Rev. C, Fig. 4 (Ferritic) and PDI-UT-2, Rev. C, Fig. 4 (Austenitic). These cover the generic procedures for the ultrasonic examination of both ferritic and austenitic pipe welds. The blocks offer an economical alternative to fabricating multiple curved calibration blocks (pipe sections) in numerous diameters and wall thicknesses.

Overall block dimensions are 2.000" wide x 2.250" tall x 10.000" long. Block design consists of steps simulating wall thicknesses measuring 0.500", 1.000", 1.500" and 2.000". Each step contains a 0.010" wide EDM notch, machined across the width of the step at a depth of 10% of wall thickness. Scanning surfaces and reflecting surfaces. are machined to simulate pipe and plate surfaces of 250 Ra max. finish. Each block is machine-engraved on one side with the Block description, Serial No., Alloy and Heat No. All blocks are made from ultrasonically inspected, heat number traceable materials.







Materials

Standard Materials

  • 304/304L Stainless Steel
  • 316/316L Stainless Steel
  • A516 Grade 70 Steel

Purchasing Details:

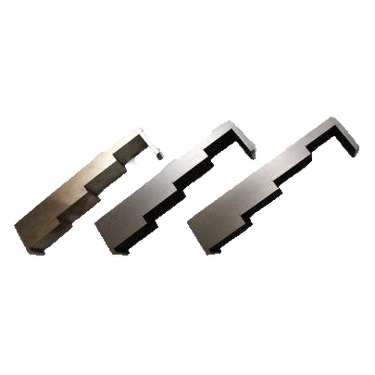

  • The blocks are normally supplied in sets of 3 individual blocks.  Individual blocks of any one alloy are also available.
  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-PDI-CAL-BLK or UT-RC-PDI-CAL-SET when adding items to the shopping cart.
Description Part # Saved Price Select Option Add to
PDI Alternative ASME (DAC) Calibration Block, Individual (select material)
Model #
UT-RC-PDI-Master
$2,540.00
PDI Alternative ASME (DAC) Calibration Block, Dimensional Certification and Serialization for Individual Blocks UT-RC-PDI-CAL-BLK
$190.00
PDI Alternative ASME (DAC) Calibration Block, 3 Block Set - 304SS, 316SS and 516Fe, Case Included UT-RC-PDI-SET
$7,310.00
PDI Alternative ASME (DAC) Calibration Block, Dimensional Certification and Serialization for Set UT-RC-PDI-CAL-SET
$569.00
