Phoenix ISL IR Emitters

IR Emitters

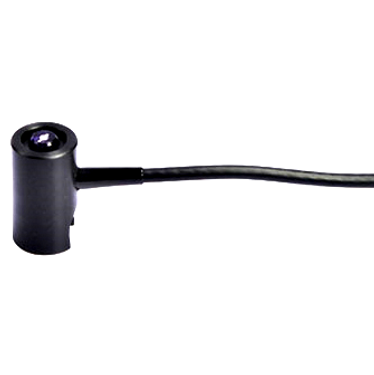

Phoenix offers a range of infrared emitters that can be fitted temporarily or permanently to the range of corrosion mapping probes. These emitters when used in conjuction with a C-Scan system enable accurate corrosion maps to be generated whilst still scanning the work piece manually.

  • Supplied as standard with Lemo 00 connectors

Product Code Description
DEM-6 Push On Infrared emitter for 6mm range. Push fit onto 10mm diameter probe. 2m cable
DEM-6 Glue On Infrared emitter glue on any probe
DEM-10 Push On Infrared emitter for 10mm range. Push fit onto 10-18mm diameter probes. 2m cable
DEM-20 Push On Infrared emitter for 20mm range. Push fit onto 29mm diameter probe max. 2m cable
Permanent For fitting to SSTC 4/10 Probe. 2m cable


Notes:

Probe dimensions supplied exclude connectors, gimbal pins and couplant nozzles.

Probe diameter measurements are to the widest point.

Contouring available per probe (please specify relative to beam direction).

Certificates and documents are optional and can be supplied with all transducers.

Description Part # Saved Price Select Option Add to
IR Emitters UT-PISL-IR Request Pricing
