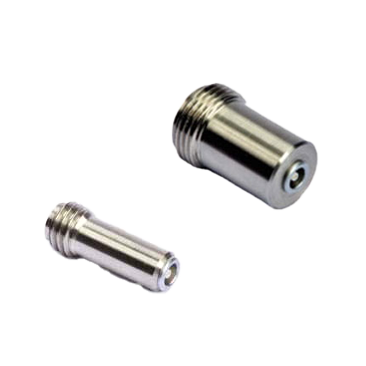

Phoenix ISL De-mountable Piezo-composite TOFD Transducers
M12 TOFD Probe | M20 TOFD Probe |
Phoenix offers a full range of transducers designed specifically for TOFD applications. They are highly damped transducers in a threaded housing, for use with demountable wedges in piezo-composite materials.
|
| Product Code | Frequency MHz | Crystal Dia (mm) | Probe Size Dia x H (mm) | Thread Size | Connector |
| CDTOF 2/02 | 2 | 6 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 2/04 | 2 | 12 | 17 x 30 | M20 | Lemo 00 |
| CDTOF 3.5/03 | 3.5 | 9 | 17 x 30 | M20 | Lemo 00 |
| CDTOF 3.5/04 | 3.5 | 12 | 17 x 30 | M20 | Lemo 00 |
| CDTOF 5/01 | 5 | 3 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 5/02 | 5 | 6 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 5/03 | 5 | 9 | 17 x 30 | M20 | Lemo 00 |
| CDTOF 5/04 | 5 | 12 | 17 x 30 | M20 | Lemo 00 |
| CDTOF 7.5/01 | 7.5 | 3 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 7.5/02 | 7.5 | 6 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 10/01 | 10 | 3 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 10/02 | 10 | 6 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 15/01 | 15 | 3 | 10 x 30 | M12 | Lemo 00 |
| CDTOF 15/02 | 15 | 6 | 10 x 30 | M12 | Lemo 00 |
Notes:
Probe Dimensions supplied exclude connectors, gimbal pins and couplant nozzles.
Probe diameter measurements are to the widest point
Contouring available per probe (please specify relative to beam direction) at additional cost.
Certificates and documents are optional and can be supplied with all transducers.
