DeFelsko Testex Press-O-Film Replica Tape

DeFelsko Testex Press-O-Film Replica Tape

Surface Replication In Three Easy Steps

Replica Tape consists of a layer of compressible foam affixed to an incompressible polyester substrate of highly uniform thickness. When pressed against a roughened surface, the foam collapses and forms an impression of the surface. Placing the compressed Testex tape between the anvils of a micrometer thickness gage and subtracting the thickness of the incompressible substrate gives a measure of the surface profile. The Replica Tape is available in a variety of thickness ranges for measuring substrate roughness, categorized in Conventional and Optical Grades. Conventional Grades offer a broader range of measurement, while the Optical Grade Replica Tape has more exact ranges that yield higher quality surface data files (.SFD).



Show More Show Less

Features:

Same Replica Foam

  • The Testex replica foam and incompressible backing remain the same and are identical to the Coarse and X-Coarse products that have been sold for decades

Increased X-Coarse Plus Range

  • Previously, X-Coarse Plus replica tape had a very limited, 116-127 µm (4.6-5.0 mil) range. The new, thicker X-Coarse Plus replica tape has a range from 100-150 µm (4.0-6.0 mils), making it suitable for more applications.
  • The previous version of X-Coarse Plus replica tape remains available in roll format

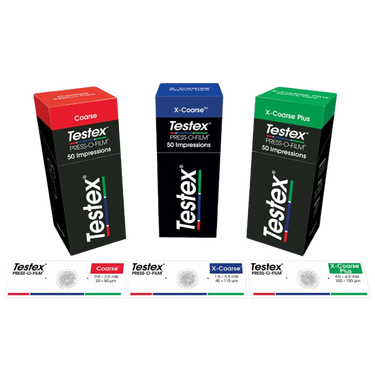

Easy-Open, Easy-Close Carton (new packaging available soon)

  • Pre-cut perforations provide a factory seal and keep the product secure during transit
  • Durable, double-walled cartons withstand tough jobsite conditions
  • Eliminates environmental concerns about single-use plastics
  • Each carton contains 50 strips (impressions) of replica tape

Improved ‘Strip’ format with Easy-Remove Tab

  • Each piece of Testex Replica Tape contains a convenient ‘peel here’ tab, making it easy to remove the replica tape from the release paper

Easy-remove Corner

  • A section of release paper remains on the replica tape in the upper-left corner, making it easy to peel the replica tape off of the surface after measurement

New 6-pack and Multipack Shipping formats (available soon)

  • Testex Replica Tape will be packaged in boxes with six cartons (each carton contains 50 strips of replica tape), a multi-language Quick Guide, and High Accuracy Burnishing Tool
  • 10- and 25- packs of six (60 and 150 cartons, respectively) available to simplify warehousing and distribution
  • Individual cartons will be available at a reduced discount

Legacy Rolls of tape remain available

  • Coarse, X-Coarse, and X-Coarse Plus replica tape remains available in the legacy plastic container, to give distributors and customers time to transition to the new format

New Digital Micrometer Designed for Replica Tape

Features:
· Bright, high-contrast digital color display with large numerals for easy viewing in bright or dark environments
· Measures in both Microns and Mils
· Built-in memory storage for up to 250 readings with on-screen statistics.
· Durable, all-metal housing and powered by a single AAA battery.

Downloadable Readings for Mac and PC:

 · Fully compatible with powerful PosiSoft Software for archiving and reporting measurement data

              · USB Drive mode retrieves data in a manner similar to a flash drive in .csv format. No software to install or  internet connection required.




Software designed for the Replica Tape Method:
·Simply select the appropriate replica tape grade to automatically apply the appropriate conversion factor and subtract the 50 µm (2 mils) backing thickness
· In ‘Average mode’, the Micrometer prompts the user and averages two readings, in compliance with international standards



Kit Includes:
· Three boxes of tape – Coarse, X-Coarse, and X-Coarse Plus
· Two burnishing tools – NEW High Accuracy Burnishing Tool and Stick Burnishing Tool
· Instruction manual
· USB Cable
· Certificate of Calibration
· One AAA battery
· Custom case





Conventional & Optical Grade Tape Grades

 Order Code Grade Range
 Conventional Grade
 RTCMIN Coarse Minus   0.5 to 1.0 mils     12 to 25 µm
 RTC  Coarse  0.8 to 2.5 mils     20 to 64 µm
 RTXC  X-Coarse  1.5 to 4.5 mils     38 to 115 µm
 RTXCPLUS  X-Coarse Plus  4.6 to 5.0 mils     116 to 127 µm
Optical Grade
 RTCOG  Optical Grade Coarse  0.8 to 2.5 mils     20 to 64 µm
RTXCOG Optical Grade X-Coarse 1.5 to 4.5 mils     38 to 115 µm







How Testex Tape Work



1. Prepare

Clean the surface with a putty to remove dust and other contaminants. Use cleaning putty to remove dust, debris, or residual blast media from the measurement site by firmly pressing the putty onto the surface to be tested using your fingers and remove.

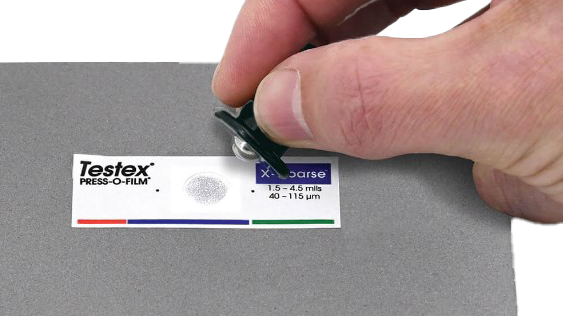

2. Burnish

Select the appropriate grade of replica tape, then pull a single piece of tape free of its release paper and apply to blasted surface. Firmly compress replica film using burnishing tool by applying sufficient pressure in a circular and x-y rubbing motion. When complete, remove tape from surface.

3. Measure

 Insert the compressed replica tape between the micrometer's measurement anvils and take a reading. Ensure the tape is properly positioned so that the burnished region is centered in the anvils with the adhesive side down.

Note: There is a $25 small order fee for orders valued less than $100.

Can combine with other products to reach minimum.

Product Literature

Description Part # Saved Price Select Option Add to

Replica Tape
DeFelsko Testex-Press-O-Film Replica Tape - Coarse Minus - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTCMIN
$38.00
DeFelsko Testex-Press-O-Film Replica Tape - X-Coarse - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTCX
$38.00
DeFelsko Testex-Press-O-Film Replica Tape - Coarse - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTC
$38.00
DeFelsko Testex-Press-O-Film Replica Tape - X-Coarse Plus - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTCXPLUS
$50.00
DeFelsko Testex-Press-O-Film Replica Tape - Optical Coarse - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTCOG
$50.00
DeFelsko Testex-Press-O-Film Replica Tape - Optical X-Coarse - 50 Pieces (Impressions) (Formerly R-PRESS) SC-DF-RTXCOG
$50.00

Micrometers
DeFelsko Testex-Digital Micrometer - Mils - Certified SC-DF-RTMMILCERT
$300.00
DeFelsko Testex-Digital Micrometer Kit - Mils - Certified SC-DF-RTKITMILCERT
$365.00
DeFelsko Testex-Digital Micrometer - Microns - Certified SC-DF-RTMMICCERT
$300.00
DeFelsko Testex-Digital Micrometer Kit - Microns - Certified SC-DF-RTKITMICCERT
$365.00

Accessories
DeFelsko Plastic Burnishing Tool SC-DF-RTBURNISHPL
$0.12
DeFelsko Stainless Steel Burnishing Tool SC-DF-RTRBURNISHSS
$10.00
